CD05HPT Low Latency 50ms S Band 2.4G Drone Video Transmitter Airborne Uplink

CD05HPT Drone Video Transmitter Adjustable Video Resolution and Bit Rate Output

CD05HPT Drone Video Transmitter & Receiver Specifi...

1. Introduction

CD05HPT is a mini Full HD Video links and duplex data telemetry control system for unmanned aerial vehicles drones provided full hd video data control, ttl protocal & payload in and out,It support video format(H.264+H.265) coding&decoding technology to achieve.Utra-high resolution(1080P/30fps), long distance(air to ground 10km) and low delay(50-100ms) transmission.
The systemsupports two-way(data) duplex communication, adjustable video resolution, bit rate output with 115200. It can using on industrial drone, drone, mapping drone, delivery drone.

2. Feature

Working Temperature: -40℃—+85℃
Support TTL/Mavlink Telemetry
Support H.264 and H.265 coding and decoding.
High video streaming signal
Offering control, telemetry & payload HD and ethernet video out.
Video: Video sources self-adaptive(Max 1080P/60), Support HD digital Input/output

3. parameters

Wireless
Frequency Range	2.4GHZ (2402-2482GHZ)
Bandwidth	4Mhz
Data Rate	3 ~ 5Mbps
RF Power	500mW (Air to Ground 5km)
Error Detection	LDPC FEC,Video H.264/265 Super Error Correction
Latency	≤15-30ms
Receive Sensitivity	-100dBm@4Mhz

Video
Video Input	Mini HDMI
Ressolution	Ultra HD 1080p/60fps
Compressed Format	H.264/H.265
Color Space	4:2:0(Default),4:2:2/4:4:4(Op.)

System
Start-up Time	≤30s
Transmission	Video＋Duplex Control Data
Data Protocol	SBUS/TTL/MAVLINK Telemetry
Power Supply	DC7 ~ 18V Power Supply
Security	AES128 Encryption

Interface
RF Antenna	SMA×1
HDMI Interface	Mini HDMI(HDMI Type C)×1
Serial Port Interface	TTL Serial to USB Connector×1
Ethernet Interface	Ethernet to RJ45 Connector×1
Power Input	2Pin to DC Jack Connector×1

Physical
Dimension	72x47x19mm
Weight	94g(Transmitter),94g(Receiver)
Operating temperature	-40°C ~ ＋85°C

4. Technical Support of drone radio links

Q1:How long range from air to ground?
4-6km from airborne to ground

Q2:Video output type?
HD+Ethernet RJ45 Port

Q3:Frequency would be?
2.4GHz S band only

Q4:Transmitting power?
27dbm 0.5Watts

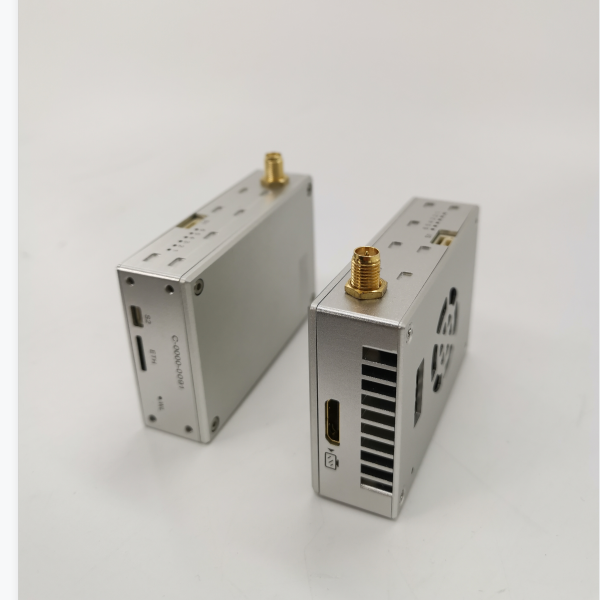

5. Product picturer
