Defense PTP PTMP 15km 1.4G Drone Video Transmitter COFDM

Ask Lasest Price
Brand Name :	Suntor
Model Number :	ST9633NF
Certification :	RoHS CE SGS FCC
Price :	Negotiation
Payment Terms :	T/T, Western Union, PayPal
Supply Ability :	100SET/Month
Delivery Time :	15-20days

Add to Cart

Product Details
Company Profile

Defense PTP PTMP 15km 1.4G Drone Video Transmitter COFDM

Defense PTP PTMP 15km 1.4G Drone Video Transmitter COFDM

DRONE ip mesh radio

Here download data sheet in pdf file

ST9633NF Specification.pdf

Product Specifications for Drone Video Transmitter:

Distance: 200-500meters NLOS in ground to ground,

1-3km open area in ground to ground LOS, ＞30km in airborne to ground LOS.

Fre Band: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customizable 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s

SUNTOR module ST9633NF is the 40-50km range of design with 1.4G frequency RF module for industrial Drones.

ST9633NF

In order to solve The problem of network congestion. The advanced MESH design concept does not require a central gateway, and any one can realize the self-organizing network function. Any device in the group is disconnected, and the corresponding device will continue to communicate within the effective antenna coverage. The network does not drop.

Power supply	24V(14V-36V)
Bandwidth:	5.0/10.0/20.0MHz
Waterproof	IP65
Encryption	AES128/256
Net Weight	170g
Transmisison	IP Video output
How long range	200-500m in NLOS
Dimension	163x113x54mm

Product Application for Drone Video Transmitter:

Mapping Oil gas inspection, harsh environment,Widely used in law enforcement surceillance, ,

Security & Emergency Security, Mining, Sea Ports, Aerial Surveillance

Product Parts List for Drone Video Transmitter:

1.TNC Antenna x 2pcs

2.Wifi Antenna x 1pcs

3.GPS Antenna x 1pcs

4.Ethernet Cable x 1pcs

5.Power Cable x 1pcs

6.Power Adapter x 1pcs

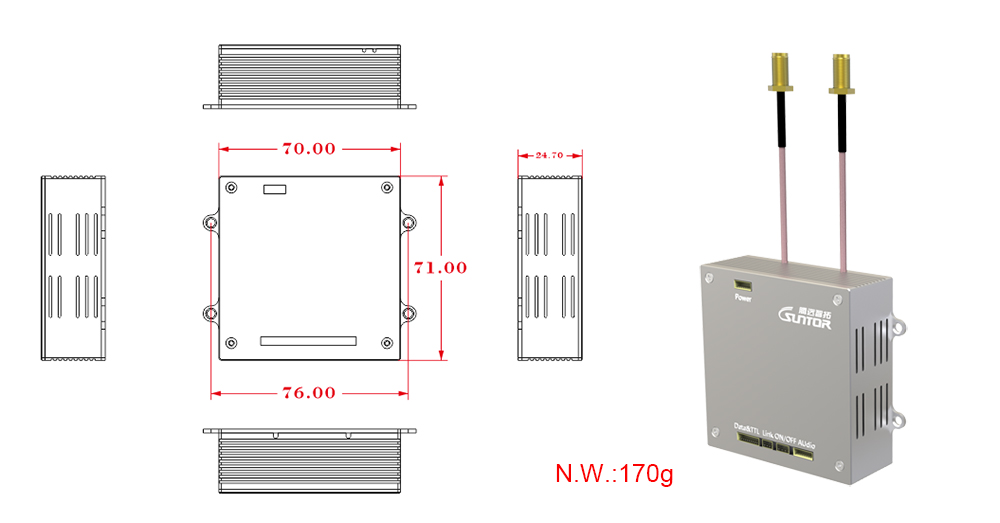

Dimension and weight for Drone Video Transmitter:
