CD15NMT-Mini Metal COFDM Video Transmitter 15km Range For Mapping Drones UAV

Ask Lasest Price
Brand Name :	SUNTOR
Model Number :	CD15NMT-mini
Certification :	RoHS,FCC,SGS, CE
Price :	Negotiation
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	1000 set/ month
Delivery Time :	3-7 days

Add to Cart

Product Details
Company Profile

CD15NMT-Mini Metal COFDM Video Transmitter 15km Range For Mapping Drones UAV

Mapping Drones Using UAV Video Link COFDM Video Transmitte

Product Key Features of Drone Video Transmitter:

Model:CD15NMT-mini

Range:15km

Dimension:88x55x17mm

Video&Data:IP Ethernet x1 TTL x1

TX Power:300mW(25dBm)

Consumption:TX 5W RX 5W

Frequency:1.4GHz/800MHz/2.4GHz

Rate:3-8Mbps, Max 30Mbps

Latency: ≤50-70ms

Weight:Tx 110g Rx 110g

Suntor CD15NMT-minitransmitter receiver is a set of real-time VIDEO transmission system which is specially designed for working with multi-rotor s and fixed wing drone using.

Parameter

Model: CD15NMT-mini
Frequency	800MHz 2.4G 1.4GHz	Adjustable
RF Transmitting Power	300mW
Frequency Bandwidth	3MHz/5MHz/10MHz/20MHz	Adjustable
Antenna	small ruber MIMO Omni Antenna
Adjustment mode of bit rate	Software adjustment
Encrypted	AES 128
Transmission Mode	PTP PTMP
Start-up time	< 30s
Transmission Range	Air to ground 15-20km
System Latency	50-70ms
Two-way function	Integrate multiple radio links into one to transmit and receive. Support SBUS/Mavlink/TTL communication module	Optional
Transmitting Rate	100Mbps
Modulation	OFDM	DC9~18V Optional
Module Consumption	TX:5W RX:5W	Maximum
Temperature	Operating temperature: -25 - 60°C Storage temperature: -30 - 70°C
Indicator Light	RJ45 input/output indicator light Transmitting and receiving indicator light Transmitting and receiving indicator light Power light
Appearance Design	CNC technology/ double aluminum alloy shell with waterproof design
Size	88×55x17mm
Net Weight	Tx:110g Rx: 110g

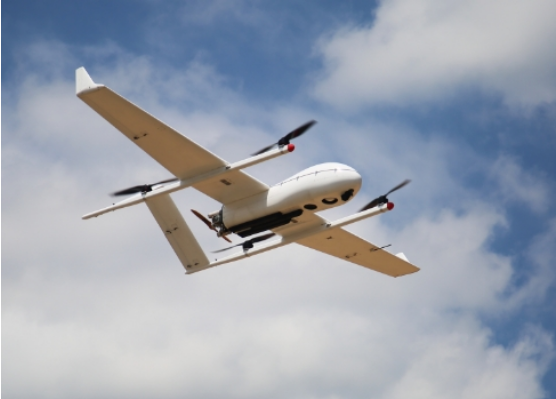

Product Application of Drone Video Transmitter:

Energy Oil&Gas/Precision Agriculture/Mapping

Aerial Surveys and Inspections/Geological Inspection

Logistic Delivery/ Defense

Components List:

1.Transmitter x 1pcs

2.Receiver x 1pcs

3.Antenna x 4pcs

4.Feed Antenna Cable x 4pcs

5.Ethernet Cable x 2pcs

6.Power Cable x 2pcs

Warranty:

Products are warranted for 1 year from the date of package signed.
