1. Description

CD05HPT​ is a mini HD Video and Data transmission COFDM system for UAV offering control, telemetry & payload in,Video Transmission in 1 RF channel. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission. The system supports two-way(data&image)communication, adjustable video resolution,bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

2. Parameters

3. Features

• Video Input: High Definition Multimedia Interface
• Resolution: Full HD 1080P/60
• Frequency: 2.3Ghz-2.5Ghz
• Transmission distance: Air to ground 5km .
• Latency: 15-30ms.
• Duplex Data Transmission :SBUS/TTL/MAVLINK Telemetry .

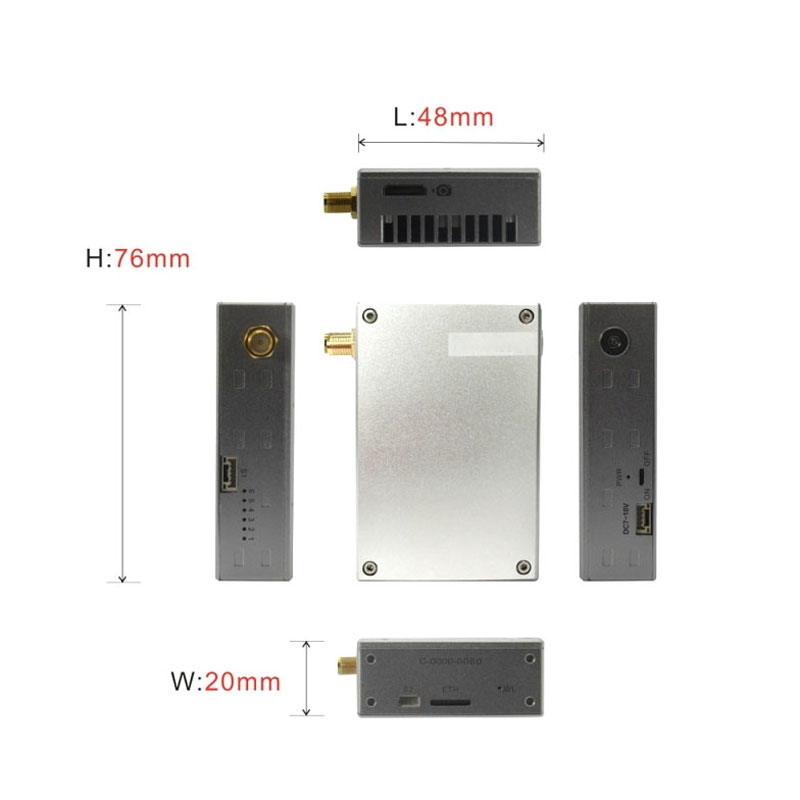

• Dimension: 72*47*19mm
• Weight : TX94g/RX94g

​
