CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range

CD05HPT Drone Video Transmitter & Receiver Specifi...

1. Description

CD05HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to
achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low
delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable
various environment of different application.

2. Features

Video Input: High Definition Multimedia Interface
Resolution: Full HD 1080P/60
Frequency: 2.3Ghz-2.5Ghz
Distance: Air to ground 5km
Latency: ≤15-30ms
Duplex Data Transmission: SBUS/TTL/MAVLINK Telemetry
Dimension: 72*47*19mm
Weight: TX 94g/RX 94G

3. Parameter

Wireless
Frequency Range	2.4GHZ (2402-2482GHZ)
Bandwidth	4Mhz
Data Rate	3 ~ 5Mbps
RF Power	500mW (Air to Ground 5km)
Error Detection	LDPC FEC,Video H.264/265 Super Error Correction
Latency	≤15-30ms
Receive Sensitivity	-100dBm@4Mhz

Video
Video Input	Mini HDMI
Ressolution	Ultra HD 1080p/60fps
Compressed Format	H.264/H.265
Color Space	4:2:0(Default),4:2:2/4:4:4(Op.)

System
Start-up Time	≤30s
Transmission	Video＋Duplex Control Data
Data Protocol	SBUS/TTL/MAVLINK Telemetry
Power Supply	DC7 ~ 18V Power Supply
Security	AES128 Encryption

Interface
RF Antenna	SMA×1
HDMI Interface	Mini HDMI(HDMI Type C)×1
Serial Port Interface	TTL Serial to USB Connector×1
Ethernet Interface	Ethernet to RJ45 Connector×1
Power Input	2Pin to DC Jack Connector×1

Physical
Dimension	72x47x19mm
Weight	94g(Transmitter),94g(Receiver)
Operating temperature	-40°C ~ ＋85°C

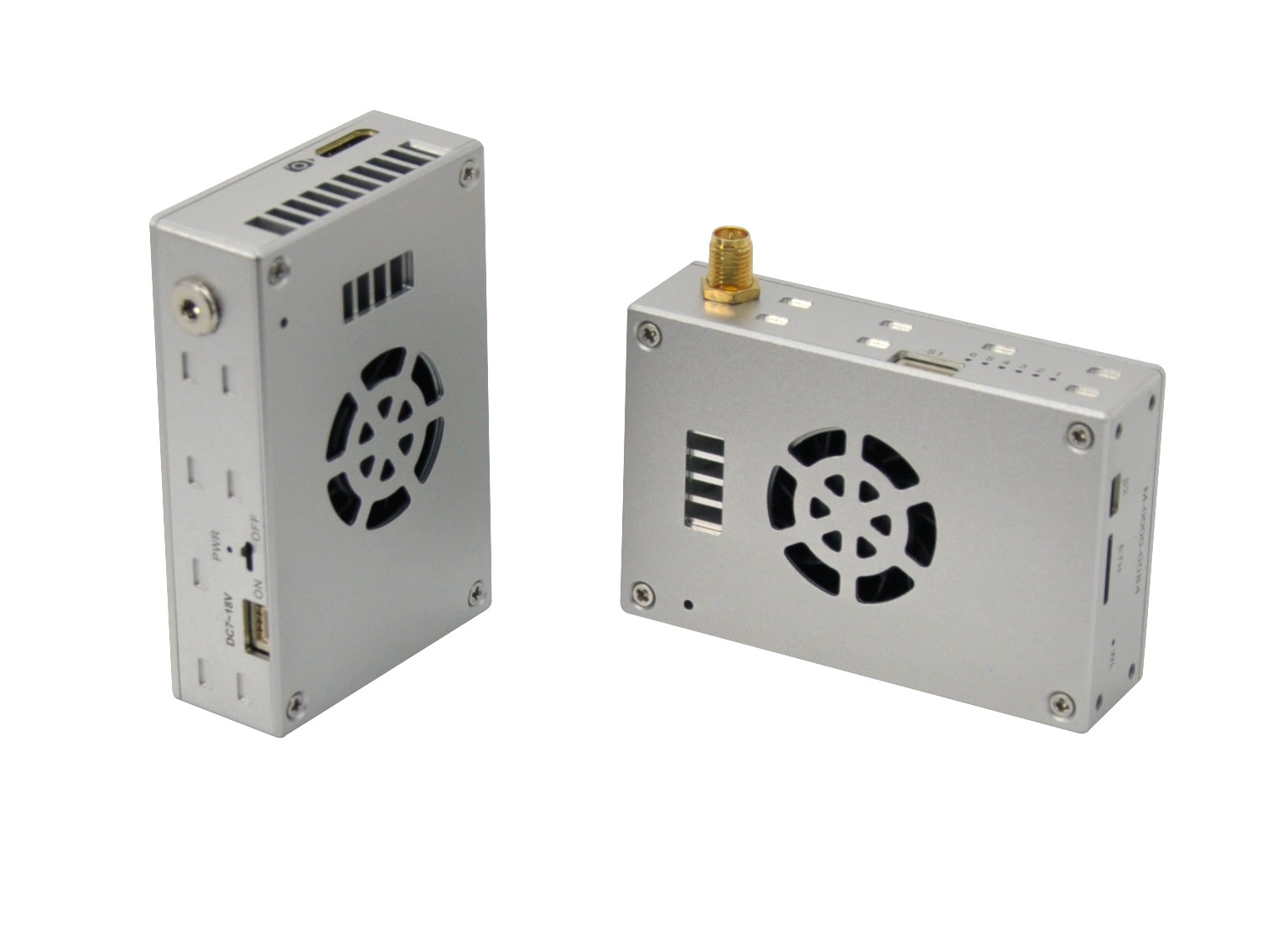

CD05HPT Ultra High Def Drone Video Transmitter & Receiver 1080P/60, 5km Range

Packing list : 1*Tx, 1*Rx, 1*Tx Antenna, 1*Rx Antenna, 3*Power Cable, 3*TTL Data Cable, 3*Ethernet Cable, 3*Antenna Cable,
2*High Definition Multimedia Interface Cable, 1*TPlayer Key, 1*Package Box .
