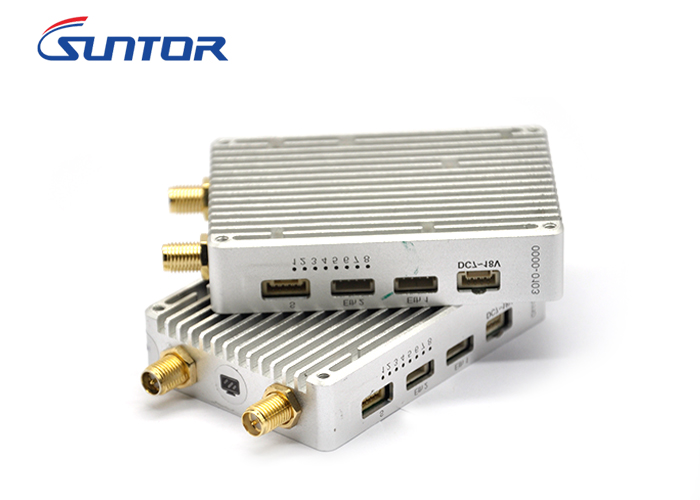

    10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL

    Ask Lasest Price
    Brand Name : Suntor
    Model Number : ST10NPT
    Certification : CE, RoHS, FCC
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 pcs per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

    10KM Drone Transmitter And Receiver Link 2.4GHz Frequency With ETH / TTL

    Suntor working at wireless transmission filed has been 13 years. The high-tech enterprise born from a small electronics corporation in Shenzhen to now day a large scale company step by step. Suntor manufacture specially various of wireless video transmission equipment, and did a lot of solutions and help for customers all over the world.




    Features


    1. Ultra-low power consumption 5W
    2. Support aes128 encryption
    3. Excellent objective and subjective video

    4. Ultra-low latency 20-30ms

    5. Long range and good performance

    6. Ultra small resource and high performance


    Ethernet ProtocolUDP/ TCP
    Frequency

    3 frequency for your option 2.3Ghz/2.4Ghz/2.5Ghz(customized)

    2.3GHz(2304~2390MHz)

    2.4GHz(2402Mhz-2482MHz) default

    2.5GHz(2500~2570MHz)

    RF Transmitting Power30dBm(air to ground 5km)
    Frequency Bandwidth4MHz
    Error DetectionLDPC FEC
    Start-up time<35 s
    Communication Channel Encryptionaes 128
    Transmission Modepoint to point
    Net WeightTx/ Rx: 68g
    Start-up time< 30s
    Two-way functionSupport video and duplex data simultaneously
    DataSupport SBUS/TTL/MAVLINK Telemetry
    Date Rate4-5Mbps
    Appearance DesignCNC technology/ double aluminum alloy shell with waterproof design
    Sensitivity

    -100dbm@4Mhz

    -95dbm@8Mhz

    PowerDC12V (support DC 7-18V)
    Power ConsumptionTX: 6Watts
    RX: 5Watts
    TemperatureOperating temperature: -40 - +85°C
    Storage temperature: -55 - +100°C
    InterfacePower input interface × 1
    Antenna interface × 1
    TTL Bidirectional Port × 1
    Ethernet port× 2
    IndicatorRJ45 input/output indicator light
    Transmitting and receiving indicator light
    Transmitting and receiving indicator light
    Power light
    Size68×48x15mm


    Suntor bought many new machines for testing products and control the quality carefully, focus on wireless transmission equipment all the time, for example 1.3-2.5GHz UAV link transmission system, UHF mobile video system, 5.8GHz long range backhaul system and MESH Ad-Hoc Network system. It’s obvious, Suntor brand is more and more popular and stronger in video transmission industry.

    .
