5KM UAV Wireless Data Link Point To Point Transmission Module
Wireless Video Input Transmission Module More Than 5KM UAV Data
Link
Parameter
| RF Transmitting Power | 26dBm(air to ground 5km) |
| Frequency | 2.3Ghz(2304Mhz-2390Mhz) 2.4GHz(2402Mhz-2482MHz) 2.5Ghz(2500Mhz-2570Mhz) |
| Frequency Bandwidth | 2/4/6/8MHz |
| Transmission Mode | point to point |
| Error Detection | LDPC FEC |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/TTL/MAVLINK Telemetry |
| Date Rate | 3-5Mbps |
| Ethernet Protocol | TCP/UDP |
| Antenna | 1T1R |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | AES128 |
| Sensitivity | -100dbm@4Mhz -95dbm@8Mhz |
| Power | DC 7-18V |
| Power Consumption | TX: 5Watts |
| RX: 5Watts |
| Temperature | Operating temperature: -40 - +85°C |
| Storage temperature: -55 - +100°C |
| Interface | Power input interface × 1 |
| Antenna interface × 1 |
| RS232 Bidirectional Port × 1 |
| Ethernet to USB / RJ45 on Windows × 2 |
| Indicator | RJ45 input/output indicator light |
| Transmitting and receiving indicator light |
| Transmitting and receiving indicator light |
| Power light |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
Description
SUNTOR ST5NPT supports 2.3GHz-2.5Ghz and suitable for long
distance, high code stream and wireless transmitting application.
It is a TDD-COFDM wireless communication equipment based on
standard. The farthest transmission distance is 5km air to ground
or 6km air to air.
SUNTOR ST5NPT with RJ45 and TTL bidirectional serial port, this
model can wireless transmit video and Ethernet Data. It has
advantages of light weight, mini size, low power consumption, high
stability and receiving sensitivity. They always be used in Vtol drones and UAVs.
Features
- Support AES encryption;
- Transmitting Power: 500mW;
- Range: air to ground 5km;
- Working Temperature: -40℃—+85℃;
- Frequency Bandwidth: 2/4/6/8MHz Adjustable;
- Support: 2.3GHz-2.5Ghz TDD-COFDM;
- Duplex Data Transmitting: Support SBUS/PPM/TTL/MAVLINK Telemetry;
- Mode: Point to Point and Point to Multi-point.
The SUNTOR ST5NPT have two Ethernet interfaces and eight indicator
lights ,it's easy to connect and see its state visually. Wide
voltage supply is adopted DC from seven to eighteen.

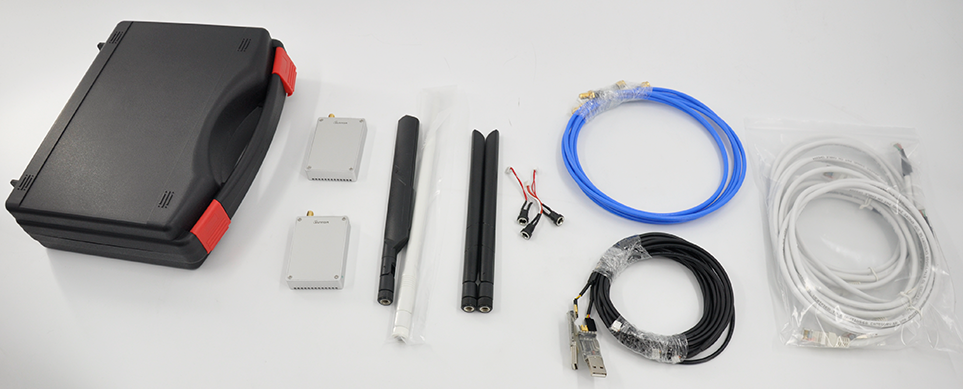

Package List
1*Tx, 1*Rx, 1*Tx Antenna, 1*Rx Antenna, 3*Power Cable, 3*TTL Data
Cable, 3*Ethernet Cable, 3*Antenna Cable, 1*Package Box
