Wireless IP MESH Multi-Hop Ad-Hoc Network Equipment GPS/Wifi/4G
MB33
Backpack Mesh Radio Specifications-v1.0_compr...
Product Introduction
Multi carrier COFDM technology
Peak peer-to-peer bandwidth up to 90Mbps.
Point to point transmission distance > 30Km (Visible distance)
Multi hop ad hoc network (MESH) technology
Automatically construct network and calculate network routing, No
manual operation required, effectively saving manpower and
resources.
Supports 52-node AD hoc network, automatic multi-hop transmission,
and realizes seamless coverage of the area.
Portable and easy to use
No more setup required before using.
Supports configuration functions for Mobile phones, WEB, etc., and
can be remotely managed.
Customized functions
Transmission power 2W adjustable.
Working frequency range 200MHz-1.4GHz customizable.
Channel bandwidth 5/10/20MHz adjustable.
Product Features
- Centerless networking: nodes can be used as terminal nodes with
equal status;
- Arbitrary structure networking: nodes are automatically recognized
to choose the optimal route for bandwidth data;
- Security and confidentiality: encryption through the working
frequency, carrier bandwidth, scrambling code, etc., supporting
AES128/256; and
- Anti-jamming, anti-destruction: using COFDM, MIMO, ARQ and other
technologies to improve data bandwidth and anti-jamming
performance;
- Multi-node flexible networking: automatic calculation of link
routing according to channel quality, rate, BER and other
indicators, flexible networking;
- All-IP network interoperability: support for data transmission,
multiple systems interconnection and interoperability, real-time
interaction of multimedia services.
- Translated with DeepL.com (free version)
| System Parameter |
| Operating frequency | 1428~1448MHz |
| Bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 90Mbps@20MHz |
| RF Transmitted power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video input | Support IP network video input , WIFI video access (HDMI video
input need to be customized) |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops |
| Access time | 5s after start up of the system |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | AES128/AES256 |
| Power supply mold | Allocate DC 25.2V removable lithium battery |
| Power Consumption | ≤30W |
| Equipment interface |
| Antenna interface | N-K×2 |
| GPS interface | SMA-K |
| WIFI interface | SMA-K |
| Ethernet interface | Aviation interface,Support 100M network interface |
| Audio interface | Aviation interface,Support hand microphone or earphone |
| Physical indicators |

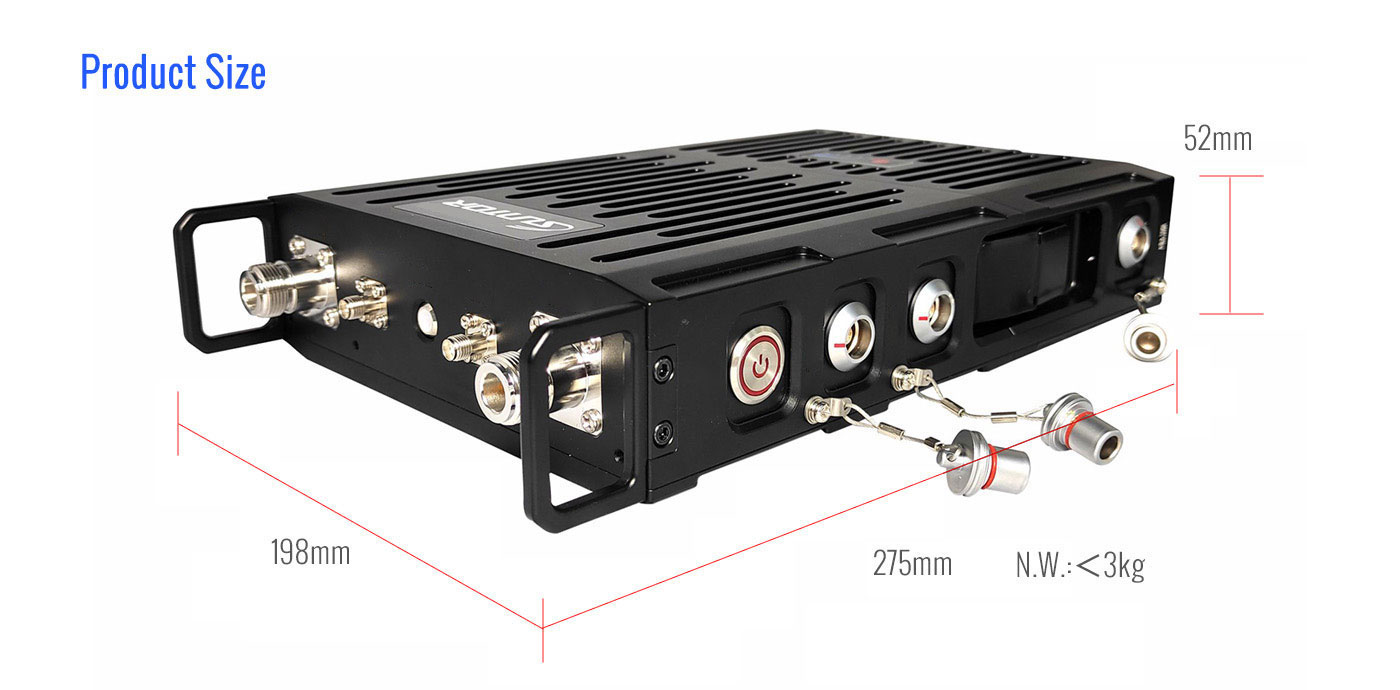

| Dimension | ≤275mm × 198mm ×52mm(include battery) |
| Equipment Weight | ≤3kg(include battery) |
| Protection degree | IP66 |
| Working temperature | -30℃～+65℃ |
