PB33
Portable Command & Dispatch Platform Box Spec...
1. Quick details of Wireless Mesh Network Device
--- Typical Working frequency: 1438MHz
--- Bandwidth: 1/2/5/10/20 MHz
--- Transmitting power: 2 W/33dbm
--- Power supply: removable battery DC14.8V
--- Transmission Rate: 80Mbps
--- NLOS distance: 300-500m
--- LOS distance:10-20KM
--- Support for 52 nodes
--- Receive sensitivity:-97dbm
--- Modulation: COFDM
2. Description of Wireless Mesh Network Device
Intelligent MESH communication system command box (hereinafter
omitted as command box) is an intelligent, portable and
multi-functional emergency command and dispatch system
independently developed by SUNTOR ELECTRONICS CO., LTD.
The device has the advantages of flexible networking and convenient
operation,widely used in various emergencies.
The command box has 4G routing function and can be connected to the
central command and dispatch platform, which truly realizes the
multi-level command and dispatch application of local linkage and
central interaction.
3. Specification of Wireless Mesh Network Device
| Transport characteristics |
| Frequency range | 1438MHz(200MHz-1.5G can be customized) |
| Bandwidth | 5M/10M/20M (adjustable) |
| Transmit power | Max 33dBm |
| Constellation map modulation | BPSK/QPSK/16-QAM(adaptive) |
| Forward error correction code | 1/2,2/3,3/4,5/6(optional) |
| Digital Sensitivity | Max-97dBm@1MHz |
| Transmission rate | Peak rate up to 90Mbps |
| Networking capacity | The number of chain hops in the ad hoc network is more than 9 hops,
and the number of nodes in the ad hoc network is not less than 52 |
| Data characteristics |
| RF interface | N*2,SMA*1 |
| Video display | 17inch HD bright screen |
| Cable interface | RJ45 waterproof interface *2 |
| Intercom interface | 6 pin aviation plug |
| Data interface | 3 pin aviation plug(backup) |
| Power interface | 2 pin aviation plug |
| 4G function | All netcom |
| Signal indicator | 5 signal indicators |
| Switch | Toggle self-locking switch |
| Encryption mode | DES (default)AES128 / AES256 (optional) |
| Electrical Characteristics |
| Operating Voltage | DC 14.8V |
| Operating Voltage | ≤ 7A |
| Power consumption | The average power consumption of the whole machine 60W |
| Battery capacity | 10Ah |
| Physical Characteristic |
| Operating temperature | -20~+55℃ |
| Storage temperature | -50℃~ +70℃ |
| Dimensions | 52.5*43.7*21.3cm |
| Device weight | 14.8kg(include battery) |
4. Feature of Wireless Mesh Network Device
■ HDMI and CVBS dual video inputs
■ 17inch HD bright screen
■ Transmission range up to 300~500m NLOS
■ Low RF transmit power: 2W
■ 30-50ms low system latency
■ 4G function
■ CUP--Intel 17
■ Operation system--WIN10/64 bits
■ AES256 encryption
■ Rugged housing and compact size

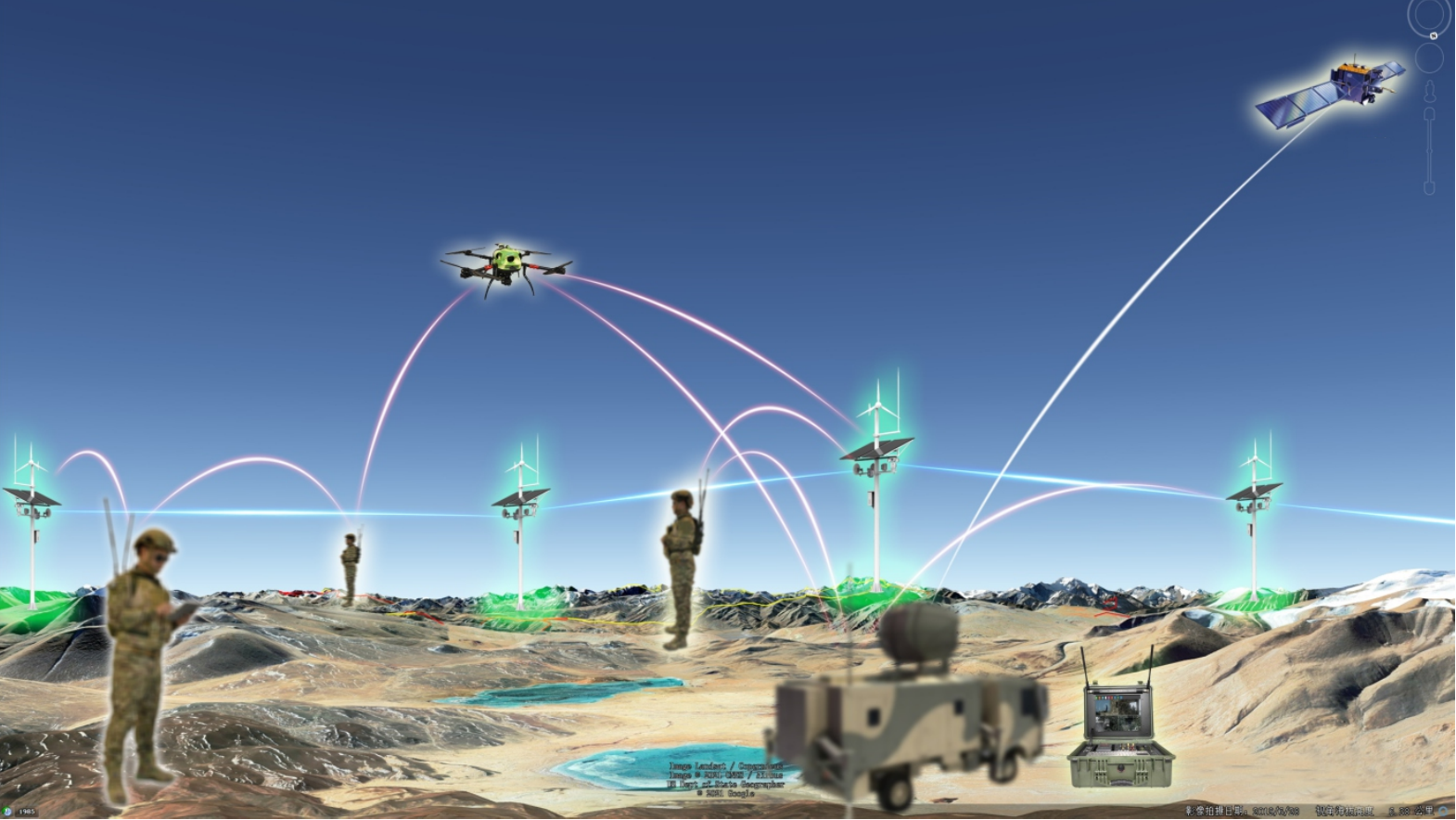

5. Application of Wireless Mesh Network Device
Widely used in various emergencies such as power emergency repair,
unmanned remote control, public security emergency control,
maritime reconnaissance, fire emergency rescue, safety production
supervision, etc
6. Accessories of Wireless Mesh Network Device
1 X of Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Power adapter cable
1 X Battery
7. Our Services
1. 16 years experience in video audio transmission solutions
2. Excellent pre-sale and after-sale Technical team
3. High quality with competitive price
4. Fast feedback and fast delivery
5. OEM supported
6. Can delivery all around the world
7. Strong developing capacity and technical teadevelopment
department also be you backing
8. FAQ
Q1: Are you a factory or trading company?
-----We are a factory,Our company mainly producing Wireless Video Transmitter.....
Q2: Do you accept sample order?
------Yes, we can accept sample order.
Q3: What's your warranty policy?
-----We offer 1 year warranty. For goods defected not by personal
seasons, we will replace for it.
Q4: What's your payment terms?
------We accept T/T in advance,100% payment before production
Q5:What's the lead time for mass order?
------Normally, it takes about 10-15 days, depends on the order
quantity or customers requirements.
