1. Quick detail Of IP MESH Radio
1.1 Typical Working frequency: 1.4GHZ
1.2 Bandwidth: 2/5/10MHz
1.3 Transmitting powe: 10 W
1.4 Power supply: DC220V adapter to DC24V
1.5 Transmission Rate: 90Mbps
1.6 NLOS distance: 1-5Km
1.7 LOS distance: over 20KM
1.8 Encryption: AES128/AES256
1.9 Receive sensitivity:-97dbm
2.0 Interface input: IP+WIFI(HDMI/AV can be customized)
2.Description of IP MESH Radio
Base Station Mesh Network radio,It can be fixedly installed on
poles, walls and brackets. It is mainly deployed in outdoor fixed
points and ship-borne mobile points.
It is waterproof and dustproof, easy to install and simple to
operate.The device has high transmission power and covers a long
communication distance.
All nodes do not need a central gateway in line of sight or in non
line of sight, and all nodes have equal status that is it can be
used as a terminal node,a relay node or a central node,without
relying on wired communication lines, and can quickly establish a
wireless communication network.
The transmission distance can reach more than 20km in the open environment on the ground, 1-5km in the blocking
environment (depending on the blocking environment), and more than
50km from air to ground.
3. Specification of IP MESH Radio
System Parameter
| Operating frequency | 1300~1500MHz |
| Bandwidth | 5.0/10.0/20.0MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 52Mbps,The highest optional version can be 100Mbps |
| RF Transmitted power | 10W |
| Receive Sensitivity | -100dBm@5MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need
to be customized) |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | ＞10 hops |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES (default) AES128 / AES256 (Optional) |
| Power supply mold | DC 24-36V supply |
| Power Consumption | ≤90W |
Equipment interface
| Antenna interface | N type ×2 |
| GPS interface | SMA surface |
| WIFI interface | SMA surface |
| Ethernet interface | Aviation interface |
Physical indicators
| Dimension | ≤340×240×135mm |
| Equipment Weight | ≤6.5kg |
| Protection degree | IP66 |
| Working temperature | -40℃～+65℃ |
4. Application of IP MESH Radio
Base Station is especially suitable for applications such as long-distance coverage link communication, information aggregation and backhaul, regional coverage support,
commanding heights enhanced coverage, and relay transmission nodes.
It can play a strong advantage in emergency response,
anti-terrorism and anti-riot, rescue and disaster relief,
large-scale event security, temporary control and relay
transmission.

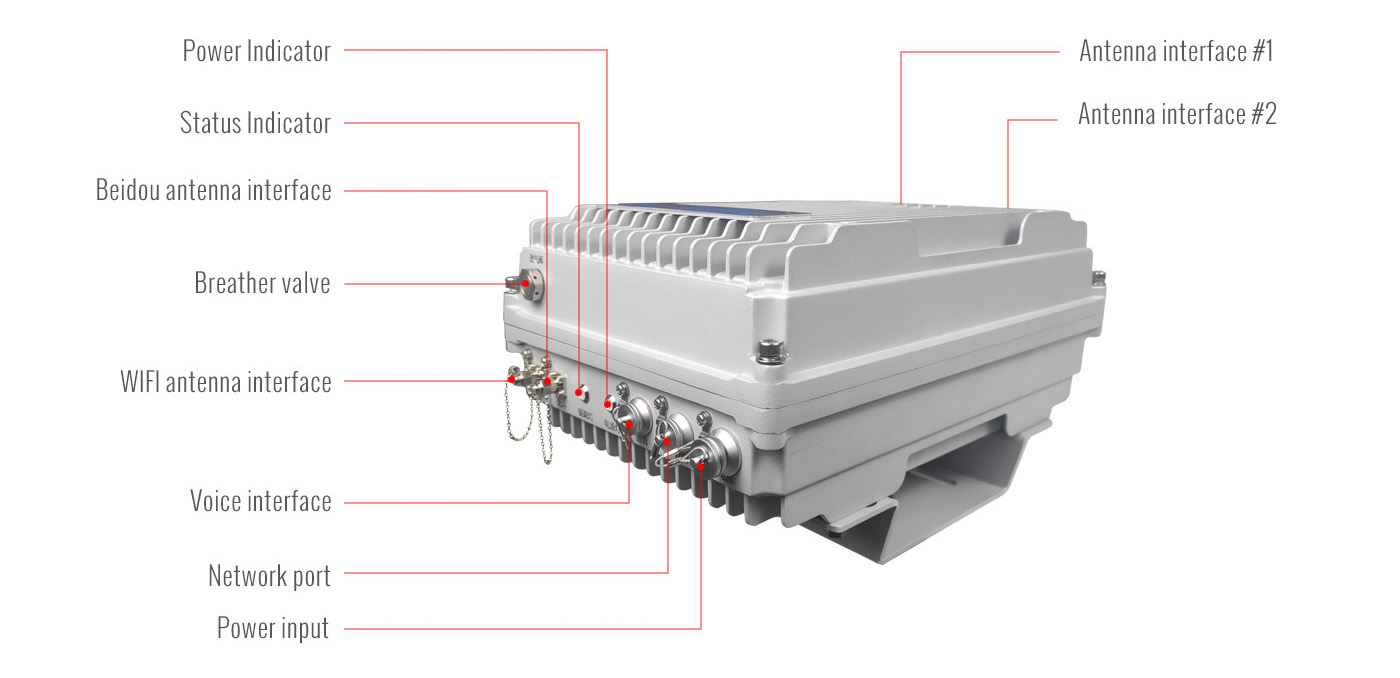

5. Interface of IP MESH Radio

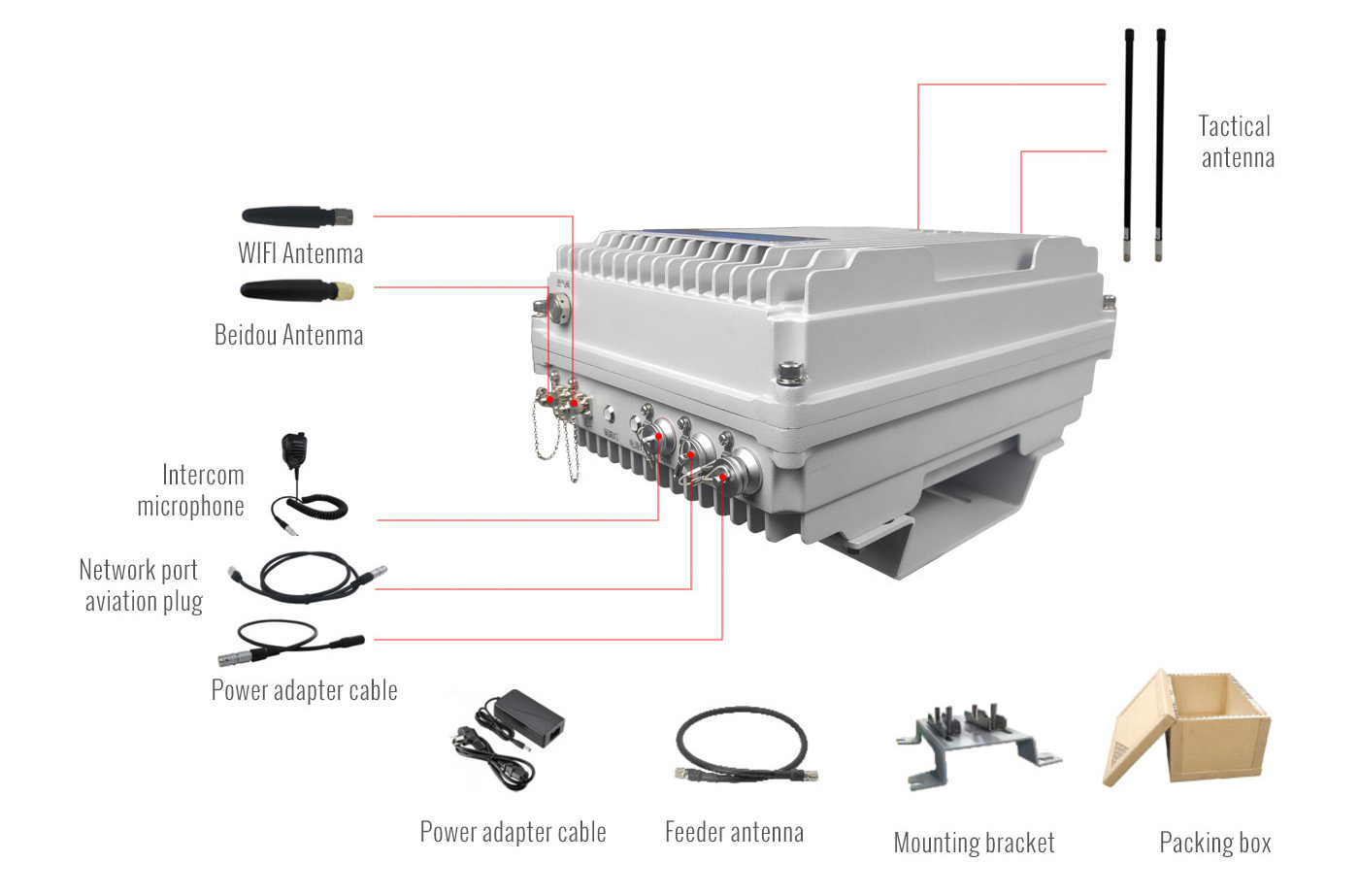

6. Accessories of IP MESH Radio
1 X Mounting brackets
1 X Charger
2 X Feeder
1 X Guarantee card
1 X of Mesh Radio Base Station Radio Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Power cable
1 X Hand microphone
1 X Network port air plug
