PB33
Portable Command & Dispatch Platform Box Spec...
1. Quick details of Mobile Ad-hoc networking
--- Typical Working frequency: 1428-1448MHz
--- Bandwidth: 1/2/10/20 MHz
--- Transmitting power: 2 W/33dbm
--- Power supply: removable battery DC14.8V
--- Transmission Rate: 80Mbps
--- NLOS distance: 300-500m
--- LOS distance:10-20KM
--- Support for 52 nodes
--- Multiple talk groups
--- Receive sensitivity:-97dbm
--- Modulation: COFDM
2. Description of Mobile Ad-hoc networking
Intelligent MESH communication system command box (hereinafter
omitted as command box) is an intelligent, portable and
multi-functional emergency command and dispatch system
independently developed by SUNTOR ELECTRONICS CO., LTD.
The command box has 4G routing function and can be connected to the
central command and dispatch platform, which truly realizes the
multi-level command and dispatch application of local linkage and
central interaction.
Quickly establish a temporary command center for various
emergencies. achieve on-site command and dispatch, remote command
and dispatch, video conference, private network access, public
network access and other functions, providing a strong guarantee
for emergency command and information reporting.
3. Specification of Mobile Ad-hoc networking
| Host characteristics |
| Operating System | WIN10/64 bit |
| CPU | Intel I7 CPU |
| Display screen | 17inch HD bright screen |
| Memory | 16G |
| Storage Mode | 240G SSD |
| Operating Mode | Embedded mouse and keyboard |
| Transport characteristics |
| Frequency range | 1438MHz(200MHz-1.5G can be customized) |
| Bandwidth | 5M/10M/20M (adjustable) |
| Transmit power | Max 33dBm |
| Constellation map modulation | BPSK/QPSK/16-QAM(adaptive) |
| Forward error correction code | 1/2,2/3,3/4,5/6(optional) |
| Digital Sensitivity | Max-97dBm@1MHz |
| Transmission rate | Peak rate up to 90Mbps |
| Networking capacity | The number of chain hops in the ad hoc network is more than 9 hops,
and the number of nodes in the ad hoc network is not less than 52 |
| Data characteristics |
| RF interface | N*2,SMA*1 |
| Video display | 17inch HD bright screen |
| Cable interface | RJ45 waterproof interface *2 |
| Intercom interface | 6 pin aviation plug |
| Data interface | 3 pin aviation plug(backup) |
| Power interface | 2 pin aviation plug |
| 4G function | All netcom |
| Signal indicator | 5 signal indicators |
| Switch | Toggle self-locking switch |
| Encryption mode | DES (default)AES128 / AES256 (optional) |
| Electrical Characteristics |
| Operating Voltage | DC 14.8V |
| Operating Voltage | ≤ 7A |
| Power consumption | The average power consumption of the whole machine 60W |
| Battery capacity | 10Ah |
| Physical Characteristic |
| Operating temperature | -20~+55℃ |
| Storage temperature | -50℃~ +70℃ |
| Dimensions | 52.5*43.7*21.3cm |
| Device weight | 14.8kg(include battery) |
4. Feature of Mobile Ad-hoc networking
■ HDMI and CVBS dual video inputs
■ 17inch HD bright screen
■ Transmission range up to 300~500m NLOS
■ Low RF transmit power: 2W
■ 30-50ms low system latency
■ 4G function
■ CUP--Intel 17
■ Operation system--WIN10/64 bits
■ AES256 encryption
■ Rugged housing and compact size
5. Application of Mobile Ad-hoc networking
Widely used in various emergencies such as power emergency repair,
unmanned remote control, public security emergency control,
maritime reconnaissance, fire emergency rescue, safety production
supervision, etc
Very suitable be used for control center.

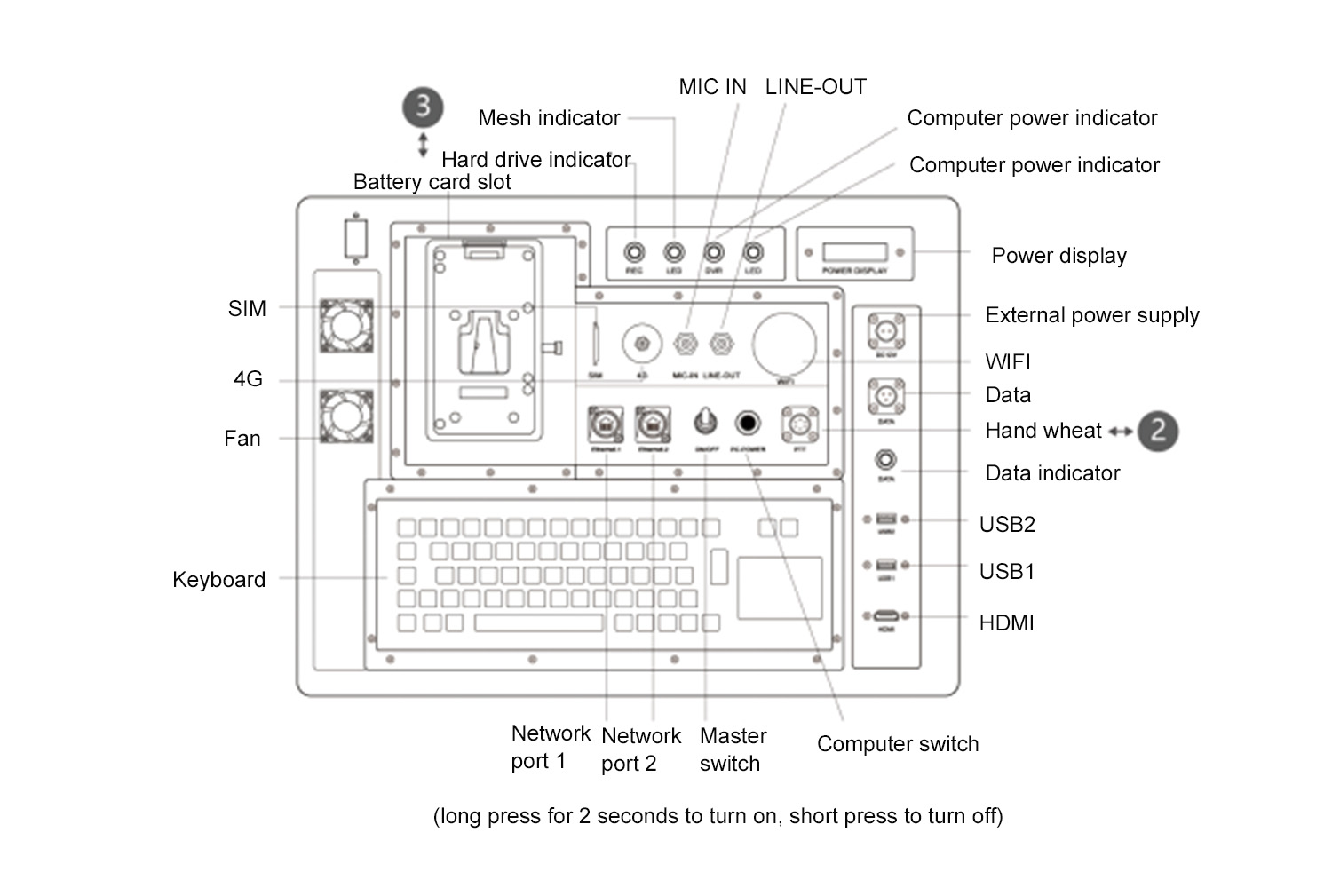

6. Interface of Mobile Ad-hoc networking
7. Accessories of Mobile Ad-hoc networking
1 X of Host
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Hand microphone
1 X Power adapter cable
1 X Battery
