2W new vedio data transmitter light weight ad hoc link LOS long
distance for UVA
1.Product Advantage
- Operating frequency 1428-1448MHz(800MHz-1.5GHz can be customized)
- Max Code stream up to 90Mbps
- LOS transmission distance 10-50 km
- Transparent transmission of IP date
- Support two-way intercom
- Centerless Self-organizing mess network,automatic link
selection,flexible networking mode,easy to use
- Multi hop to expand coverage and distance
- Long transmission distance
- With light weight,only 200g
- Suitalbe for UVA or light device
2.Description of Ad Hoc Link
Airborne Mesh radio is small in size and light in weight, which can
be installed in formal or reverse installation, which is convenient
for installation, all nodes in line-of-sight or non-line-of-sight
environment, no need for a central gateway.
All nodes have equal status, that is, they can be used as end
nodes, relay nodes or central nodes, do not rely on wired
communication lines, and can also quickly establish wireless
communication networks.
It is especially suitable for the application of central
communication command vehicles and mobile vehicle marshalling, and
can play a strong role in emergency response, anti-terrorism and
riot prevention, rescue and disaster relief, large-scale event
support, temporary distribution and relay transmission
3.Product Specification
| System Parameter |
| Operating frequency | 1428~1448MHz |
| bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 90Mbps@20MHz |
| RF Transmitted power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need
to be customized) |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops |
| Access time | 5s after start up of the system |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES (default) AES128 / AES256 (Optional) |
| Power supply mold | DC 15-36V supply |
| Power Consumption | ≤30W |
| Equipment interface |
| Antenna interface | SMA type×2 |
| Ethernet interface | JST to RJ45 network port |
| TTL serial port | SHR-4 terminal (to be confirmed) |
| Power interface | DC female |
| Physical indicators |
| Dimension | ≤88×86×29mm |
| Equipment Weight | ≤200g |
| Protection degree | IP65 |
| Working temperature | -30℃～+65 |
4.Feature of Ad Hoc Link
1. Centerless self-organizing
------Node status is equal, that is, it can be used as terminal
node, relay node or central node
2. Any organization networking
---Nodes automatically identify and select the optimal route for
bandwidth data
3. Security and confidentiality
---Layer-by-layer encryption through operating frequency, carrier
bandwidth, scrambling code, etc., supports AES128/256
4. Anti-interference, anti-destruction
---Using COFDM, MIMO, AQR and other technologies to improve data
bandwidth and anti-interference performance
5. Multi-node flexible networking
---According to the channel quality, rate, bit error and other
indicators, automatically calculate the link routing, flexible
networking

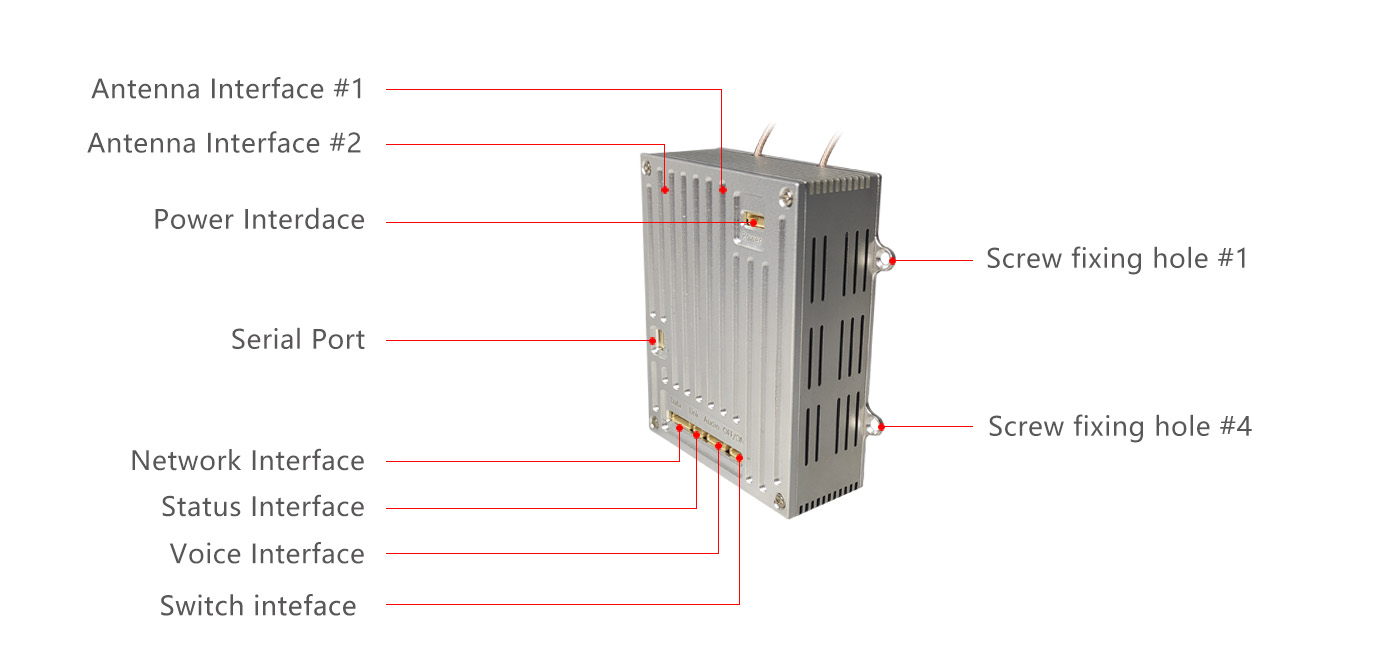

5.Interface Description
6.Application
Suitable for application scenarios with lightweight networking
needs such as UAVs. Fast network access, automatic multi-hop relay,
can quickly form an interconnected three-dimensional network with
handheld/individual soldier systems, vehicle-mounted systems and
peripheral base station networking equipment, to achieve efficient
collaboration.
