10W high power low latency Vehicle-borne Mesh redio multi-hop ad
hoc radio
1.Product Description

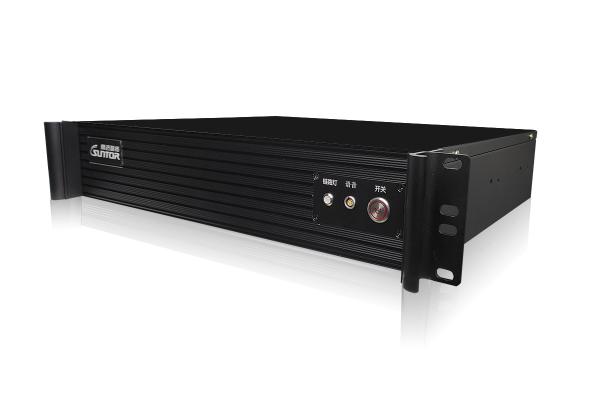

Vehicle Mesh Network radio,standard 2U rack structure for
vehicle-mounted systems, mainly for modified special communication
command vehicles, rack-mounted installation in large mobile command
vehicles.
The device has the function of mesh network communication, which
can form a communication network with its own fleet, as well as
interconnect with individual soldier device, handheld device, air
carriers (helicopter or UAV) and surrounding base stations, and
quickly establish chain communication. all nodes do not need a
central gateway in line of sight or in non line of sight, and all
nodes have equal status that is it can be used as a terminal node,a
relay node or a central node,without relying on wired communication
lines, and can quickly establish a wireless communication network.
The transmission distance can reach more than 20km in the open
environment on the ground, 1-5km in the blocking environment
(depending on the blocking environment), and more than 50km from
air to ground.
2.Product Feather
- Operating frequency 1300-1500MHz(200MHz-1.5GHz can be customized)
- Up to 100Mbps
- LOS transmission distance 10-100 km
- Transparent transmission of IP date
- Support two-way intercom
- Centerless Self-organizing mess network,automatic link
selection,flexible networking mode,easy to use
- Multi hop to expand coverage and distance
- Long transmission distance
- Strong anti-interference
- Good diffraction
- Safe and stable
3.Product Specification
| System Parameter |
| Operating frequency | 1300~1500MHz |
| bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 52Mbps@20MHz,The highest optional version can be 100Mbps |
| RF Transmitted power | 10W |
| Receive Sensitivity | -100dBm@5MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need
to be customized) |
| Networking function | Networking capable | ≥64 nodes |
| Networking hops | ＞10 hops |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES (default) AES128 / AES256 (Optional) |
| Power supply mold | AC220V supply |
| Power Consumption | ≤90W |
| Equipment interface |
| Antenna interface | N type×2 |
| GPS interface | SMA interface |
| WIFI interface | SMA interface |
| Ethernet interface | Aviation interface |
| Physical indicators |
| Dimension | ≤485×385×90mm |
| Equipment Weight | ≤6.4kg |
| Protection degree | IP65 |
| Working temperature | -40℃～+65℃
|
4.Interface Description
5.Application
It is especially suitable for the application of central
communication command vehicles and mobile vehicle marshalling, and
can play a strong advantage in emergency response, anti-terrorism
and anti-riot, emergency rescue and disaster relief, large-scale
event support, temporary control and relay transmission.
6. FAQ
Q1. Can I have a sample order for Unmanned System Radio?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for Unmanned System Radio?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo on COFDM Transmitter product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
