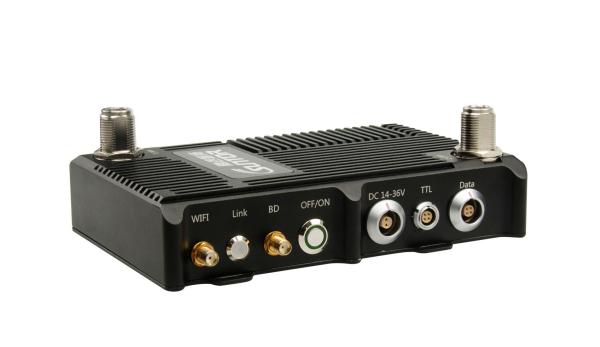

1km NLOS Unmanned System Radio for UGV Robot AES Enryption 2W
1. Quick detail Of Unmanned System Radio
1.1 Typical Working frequency: 1.4GHZ
1.2 Bandwidth: 2/5/10/20MHz
1.3 Transmitting powe: 2W
1.4 Power supply: DC15-36V
1.5 Transmission Rate: 90Mbps
1.6 NLOS distance: 300-1000m
1.7 LOS distance: over 10KM
2. Description of Unmanned System Radio
Unmanned System Mesh Network radio,with small size, light weight,
easy to install,
With Beidou positioning function, but also support WiFi coverage,
can cooperate with wifi function intelligent terminal for various
communications.
The system adopts co-frequency networking and multi-hop relay, and
supports any network topology, such as point-to-point,
point-to-multipoint, chain relay, mesh network and hybrid network
topology.
The transmission distance can reach more than 10km in the open
environment on the ground, 300-1000m in the blocking environment
(depending on the blocking environment), and more than 30km from
air to ground.
3. Specification of Unmanned System Radio
| System Parameter |
| Operating frequency | 1428~1448MHz |
| Bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 90Mbps@20MHz |
| RF Transmitted power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need
to be customized) |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops |
| Access time | 5s after start up of the system |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | DES (default) AES128 / AES256 (Optional) |
| Power supply mold | DC 15-36V supply |
| Power Consumption | ≤30W |
| Equipment interface |
| Antenna interface | N type×2 |
| GPS interface | SMA surface |
| WIFI interface | SMA surface |
| Ethernet interface | Aviation interface |
| Physical indicators |
| Dimension | ≤163×113×54mm |
| Equipment Weight | ≤660g |
| Protection degree | IP65 |
| Working temperature | -30℃～+65℃ |
4. Feature of Unmanned System Radio
- Low system latency
- Transmission rate up to 90Mbps
- LOS transmission distance10-50 KM
- Transparent transmission of IP date
- Support two-way intercom
- Centerless Self-organizing mess network,automatic link
selection,flexible networking mode,easy to use
- Multi hop to expand coverage and distance
- Long transmission distance
- Strong anti-interference
- Good diffraction
- Safe and stable

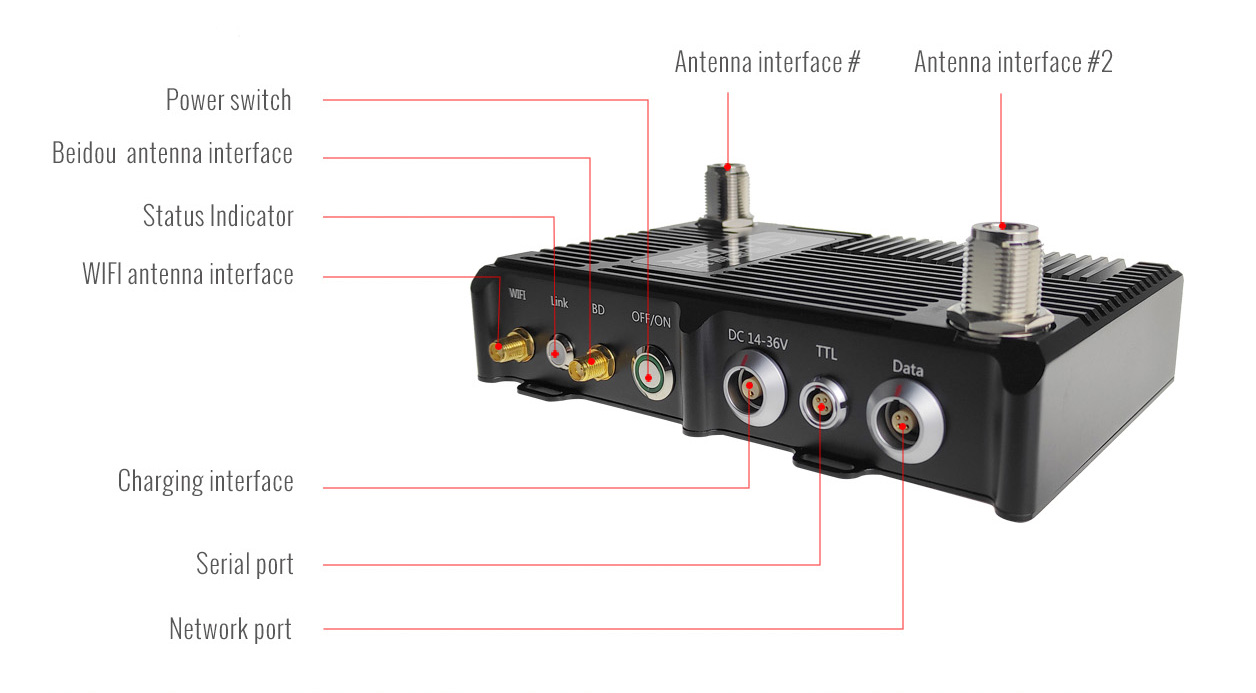

5. Interface of Unmanned System Radio
6. Application
Suitable for UVA, unmanned vehicles, unmanned boats, robots, and
other application scenarios with lightweight networking
requirements,fast network access, automatic multi-hop relay, can
quickly form an interconnected three-dimensional network with
handheld individual soldier system, vehicle-mounted system and
surrounding base station networking equipment to achieve efficient
collaboration
It can provide wireless broadband communication as soon as possible
for emergency response, anti-terrorism and anti-riot, covert
reconnaissance, special operations, rescue and disaster relief,
daily patrols and other "peace and emergency" tasks.
7. Accessories of Unmanned System Radio
1 X Unmanned System Radio Host X1
2 X RF Antenna
1 X WIFI Antenna
1 X Beidou Antenna
1 X Network port air plug
1 X Serial Port air plug
1 X Power cable
