High Quality 1W small size 1080P Wireless Mesh MANET communication
Radio
1.Product Advantage of Wireless Mesh MANET
---- Operating frequency 1428-1448MHz
---- Max Code stream up to 90Mbps@20MHz
---- LOS transmission distance 30 km
---- Transparent transmission of IP date
---- Support two-way intercom
---- Centerless Self-organizing mess network,automatic link
selection,flexible networking mode,easy to use
---- Multi hop to expand coverage and distance
---- Long transmission distance
---- With light weight,only 350g
---- Suitalbe for UVA or light device
2.Description of Wireless Mesh MANET
Airborne Mesh radio is small in size and light in weight, which can
be installed in formal or reverse installation, which is convenient
for installation, all nodes in line-of-sight or non-line-of-sight
environment, no need for a central gateway.
It is especially suitable for the application of central
communication command vehicles and mobile vehicle marshalling, and
can play a strong role in emergency response, anti-terrorism and
riot prevention, rescue and disaster relief, large-scale event
support, temporary distribution and relay transmission
3.Product Specification of Wireless Mesh MANET
| System Parameter |
| Operating frequency | 1428~1448MHz |
| bandwidth | 5/10/20MHz,Flexible and configurable |
| Transmission system | COFDM |
| Modulation mode | BPSK/QPSK/16QAM/64QAM(self-adaption) |
| Transmission capacity | Peak rate 90Mbps@20MHz |
| RF Transmitted power | 2W |
| Receive Sensitivity | -97dBm@1MHz |
| Video input | Support IP network video input and WIFI video access(HDMI/AV need
to be customized) |
| Networking function | Networking capable | ≥52 nodes |
| Networking hops | ＞10 hops |
| Access time | 5s after start up of the system |
| Network topology | Centerless network, star network, chain network, mesh network, etc |
| Encryption mode | AES128 / AES256 (Optional) |
| Power supply mold | DC 15-36V supply |
| Power Consumption | ≤30W |
| Equipment interface |
| Antenna interface | SMA-K×2 |
| Ethernet interface | J30J interface |
| TTL serial port | J30J interface |
| Power interface | J30J interface |
| Physical indicators |
| Dimension | ≤112×82×35mm |
| Equipment Weight | ≤350g |
| Protection degree | IP65 |
| Working temperature | -30℃～+65℃ |
4.Feature of Wireless Mesh MANET
1. Centerless self-organizing
------Node status is equal, that is, it can be used as terminal
node, relay node or central node
2. Any organization networking
---Nodes automatically identify and select the optimal route for
bandwidth data
3. Security and confidentiality
---Layer-by-layer encryption through operating frequency, carrier
bandwidth, scrambling code, etc., supports AES128/256
4. Anti-interference, anti-destruction
---Using COFDM, MIMO, AQR and other technologies to improve data
bandwidth and anti-interference performance
5. Multi-node flexible networking
---According to the channel quality, rate, bit error and other
indicators, automatically calculate the link routing, flexible
networking

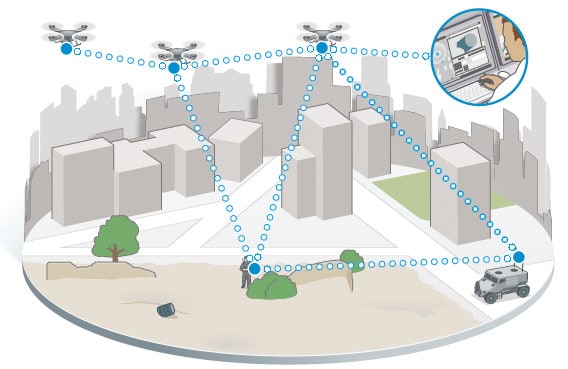

5.Application of Wireless Mesh MANET
Suitable for application scenarios with lightweight networking
needs such as UAVs. Fast network access, automatic multi-hop relay,
can quickly form an interconnected three-dimensional network with
handheld/individual soldier systems, vehicle-mounted systems and
peripheral base station networking equipment, to achieve efficient
collaboration.
It can provide wireless broadband communication for "peacetime and
emergency" tasks such as emergency response, anti-terrorism and
riot prevention, covert reconnaissance, special operations, rescue
and disaster relief, and daily patrols.
6. FAQ
Q1. Can I have a sample order for Wireless Mesh MANET?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2
weeks,customized one will based on your requirements.
Q3. Do you have any MOQ limit for Wireless Mesh MANET?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT.
