UGV UAV Drone 20km Real Time FPV Wireless HD Video Link Solution

Specs Sheet

User Manual

Introduction

ST20NPT is an all-in-one solution that combines video downlink, aircraft control and data uplink and downlink in a unified system. It breaks into two key components: the first, an air unit that includes connections for ip cameras as well as connection for pixhawk flight controller. The air unit support connect with two cameras. the second, the ground unit that connect with video display and GCS and wireless connect with FUTABA RC for 20km transmission.

Product Specification:

• Transmission distance: (outdoor) with the 5db standard omni-directional TX antenna,transmission distance over 20 km
• Band frequency: 2.402GHz - 2.482GHz
• Modulation mode: TDD-COFDM
• Video input: Mini ETH *1
• RS232 port*1
• TTL Port*1
• Compatible input video format HD all format: up to 1920x1080P @ 60fps
• Output format: 352x288@30fps, 720x576@30fps, 1280x720p@30/60fps, 1920x1080p @ 30fps, 1920x1080p @ 60fps
• Compression: High definition television broadcasting
• Channel: 80 channels (manually frequency hopping, anti-jamming)
• Support Auto Polit System: Pixhawk
• Support RC: Futaba T14SG
• Software Support system: Window 7 8 10
• Data interface: TTL transmission interface
• RF Power Adjustable: 23dbm-30dbm adjustable by software
• Communication encryption: AES 256bit encryption
• Temperature: -40℃-85℃

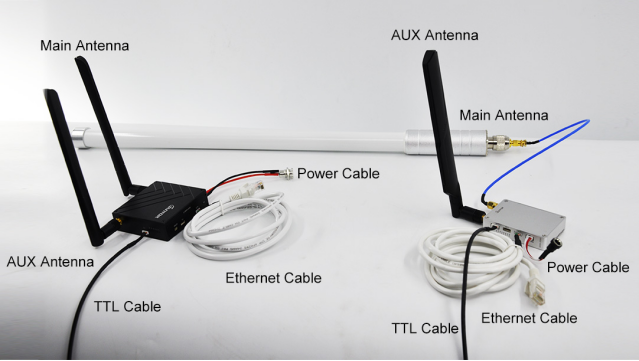

Connection

Items Included in the Box:

• Transmitter*1
• Recevier*1
• 5dbi TX Omni Antenna *2
• 10dbi RX Omni Antenna*1
• 7dbi RX Omni Antenna*1
• RS232 Cable*1
• TTL Cable*4
• T33 Cable for Pixhawk*1
• Power Cable*4
• LAN Cable*4
• Antenna Cable*4
