aeroplane downlink 1080P 1000mW Full HD Digital Video System

Specs Sheet

User Manual

Introduction

ST10NPT is the updated version of 1080P Video Transmission. Compared with the previous version, ST10NPT is compatible withPixhawk system and Futaba RC and the TX power is 1000mw. It not only support video transmission but also support data transmission.

For video ST10NPT supports IP Camera all format video input up to 1920*1080@60fps, and output is also up to 1920*1080@60fps. The ground unit is equipped with the 7db omnidirectional antenna (standard), the effective transmission distance is over 10km; and if it used with 10db directional antenna(custom), effective transmission distance is over 14km.

Specifications:

• Material: Aluminum alloy
• Size (Ground control): TX/RX 68×48x15(mm)
• Weight (Ground control): TX/RX 98g
• Video input: Ethernet
• Compatible input video format: IP all format, up to 1920*1080P@60
• Output format: 640*480p@30@60,1280*720p@30@60,1920*1080p@60
• RF parameters: 2.4GHz,FCC certification
• Interface(Ground unit): LED, power switch, Double Ethernet, serial port(TTL/SBUS/PPM/232), Power Port
• Interface(Sky unit): LED, power switch, Double Ethernet, serial port(TTL/SBUS/PPM/232), Power Port
• Power (Ground control): DC power input DC12V(DC7-18V)
• Power consumption: TX/RX 4Watts
• Transmission distance(outdoor): with the 5db omnidirectional antenna(standard),transmission distance over 10km, with the 10db directional antenna(custom),transmission distance over 14km
• Output delay: 15-30ms
• Band frequency: 2.402GHz-2.482GHz
• Modulation mode: TDD-COFDM
• Compression: HEVC High definition television broadcasting
• Support devices: PC
• Data interface: UART data transmission interface
• Communication encryption: 256bit encryption
• Temperature: -45℃-80℃

Interface Definition

1. RF Interface

RF: Standard SMA to connect with antenna or antenna feeder cable

2. Ethernet Port

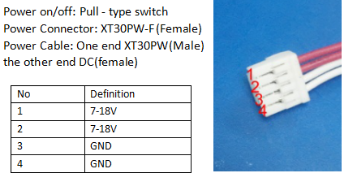

3. Power Input Interface

4. Serial Port: : H 1.0mm 5P

Package List
