Introduction
MIMO performance provides multipath immunity resulting in fast &
consistent throughput at impressive distances!
ST10NPT MIMO Digital Data Link is a miniature high power, 2X2 MIMO
2.4GHz wirless solution that provides the bandwidth and range
needed for complex data intensive applications. The MIMO TDD
features 2X2 MIMO, using Low-Density Parity Check (LDPC) to achieve
robust RF performance.
The miniature, lightweight and robust design allows the ST10NPT to
be an ideal candidate for size sensitive applications. The high
speed, long range capabilities of the ST10NPT allow for high
quality wireless video and telemetry communications.
System Features:
- 4/8Mhz bandwidth
- VHF-2.4GHz
- 1 MHz tuning steps
- IP Camera Input
- Bare board weighs less than 40grams
- Exceptionally well suited for UAV
- 10KM range(LOS)
- Available in 100mw-1000mW(Adjustable by sotware)
- Support double IP video stream input
- TDD-COFDM technology
- Configurable transmission parameters including frequency bandwidth,
code rate guard interval, constellation
- Long range transmission
- High resilience to interference, echo and Doppler Effect (high
mobility)
- Ease of installation
- Transparent mode Serial mix with up 115kbps
- Plug-and-play installation
- Channel selection on software
- Easy configuration via software(TDD software)
| Criteria | Transmitter | Receiver |
| Video Interface | RJ-45 | RJ-45 |
| Antenna Connectors | SMA*2 | SMA*2 |
| Power Input | 7-18V(12V/0.33A) | 7-18V(12V/0.33A) |
| Dimensions | 68×48x15mm | 68×48x15mm |
| Weight | 68g | 68g |
Antenna Installation

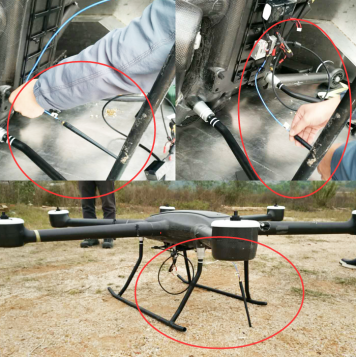

1. For Multi-rotor UAV
- Using SMA metal shielded semi-flexible blue feeder cable provided
by SUNTOR to connect the TX SMA port with antenna.
- The antenna needs to be mounted vertically downwards.
- The best installation location is UAV ground bracket. With antenna
inside, the bracket can only use fiberglass material.
- If the ground bracket is automatically retracted, the antenna can
be installed in the lower part of the aircraft.
- If the antenna is intercepted by the camera or pod or the
loudspeaker, the video on RX will appear image stuck or mosaic.
2. Fixed Wing UAV
1) Using SMA metal shielded semi-flexible blue feeder cable
provided by SUNTOR to connect the TX SMA port with antenna.
2) The antenna needs to be mounted vertically downwards.
3) The best installation position is center of UAV tail, prominent
outside the body and vertical downward.
4) The second optional mounting position is located below the wing
and body joints, vertical down, as far as possible away from the
wing but near the machine abdomen, protruding below the abdomen
level.
