Long Range HD UAV Data Link , 18-22km Analog video transmitter for Drone

Data Sheet

User Manual

Introduction

COFDM technology offers robust digital video and data transmission in the most demanding scenarios of severe multi-path. Through innovative design techniques, we have eliminated the handicap that plagued this technology – high power consumption. The result is a higher RF output transmitter with less than half the DC power consumption of the competition. SUNTOR UAV transmission system Rf has tested the wireless link to be robust up to 75 miles at 2.4GHz with normal 35dBm power output in airborne applications. This winning combination is available in the frequency range of 2403-2478Mhz.

Features:

1. Ultra-long transmission distance more than 30km
2. Support high speed move more than 600km/h
3. IP Camera video input support 1080P/1080I/720P/576P adaptive.
4. Adjustable bandwidth 2/4/6/8Mhz: multi-bandwidth, multi-rate, multi-mode
5. Multiple encryption to avoide illegal reception
6. Small design: compact, light and integrated
7. Ultra low power consumption
8. Duplex data transmission support TTL/SBUS/PPM/RS232/MAVLINK protocol

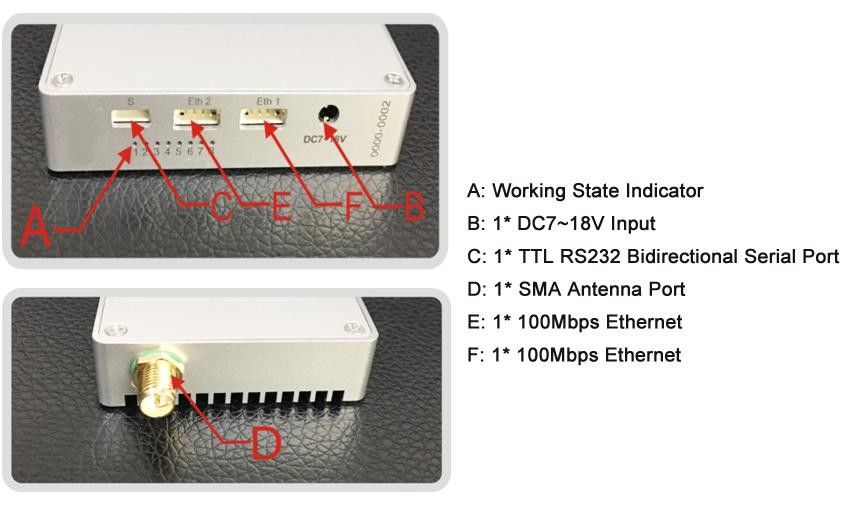

RX Interface Definition

Package List
