CD30HPT Drone Video Transmitter & Receiver Specifi...

Introduction

Model CD30HPT is our powerful and long range full HD av and data signals transmitter using the core of mobile communication technology COFDM, which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile. 1.5W rf power and -100dBm@4Mhz sensitivity can the transmisssion distance can upto be 30km. Supportting full HD 1080P(1080i) H.264 +H.265 encoding format and High Definition Multimedia Interface/Ethernet/Bidirectional serial data inputs and compatible well with Pixhawk system.

Feature:

1) COFDM modulation, Stable transmission
2) H.264+H.265+TS video compression, Full HD Video quality
3) Support high speed moving transmission
4) Works well with Pixhawk system
5) Great security by encryption of AES128 bits
6) Modular design, compact structure, OEM design
7) Support custom made for you or add additional functionality.

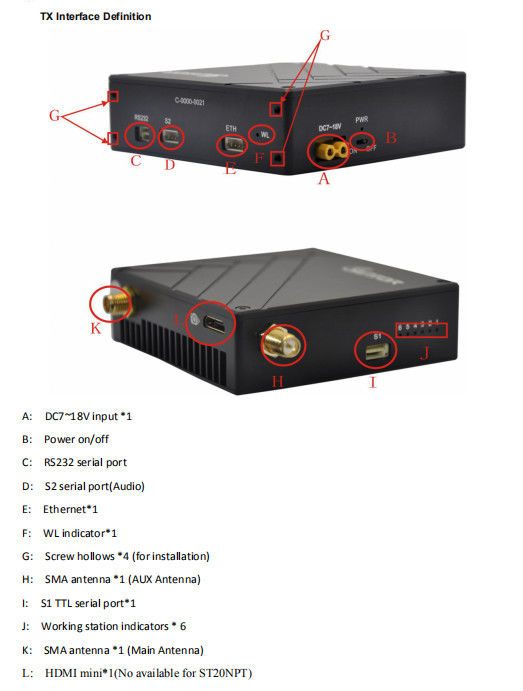

RX Interface Definition
