MU33 Repeater for drone hd uav video link security equipment
protection
MU33
Unmanned System Mesh Radio Specifications-v1....
Product Description
MU33 combines COFDM modulation, efficient channel coding and MESH
networking protocols to achieve network integration and seamless
transmission of video, data, audio and GPS data. The system adopts
co-frequency networking and multi-hop relays, and supports any
network topology, such as point-to-point, point-to-multipoint,
chain relay, mesh network and hybrid network topology. It is
suitable for emergency response, anti-terrorism and riot
prevention, hidden reconnaissance, special operations, rescue and
disaster relief, daily patrol, etc.
Product Features
- Centerless networking: nodes have equal status, i.e. as terminal
nodes, relay nodes or central nodes;
- Arbitrary structured networking: automatic identification of nodes
to select the optimal route for bandwidth data;
- Security and confidentiality: AES128/256 support through layers of
encryption such as working frequency, carrier bandwidth and
scrambling code;
- Anti-interference and anti-destruction: COFDM, MIMO, ARQ and other
technologies are used to improve data bandwidth and
anti-interference performance;
- Flexible multi-node networking: automatic calculation of link
routing and flexible networking based on channel quality, rate, BER
and other indicators;
- All-IP network interoperability: support for data transmission,
interconnection and interoperability of multiple systems, and
real-time interaction of multimedia services;
Specification
| System Parameter |
| Frequency Range | 300-1500MHz |
| Rf Bandwidth | 5/10/20MHz |
| Modulation Mode | COFDM |
| Constellation Modulation | BPSK/QPSK/16QAM/64QAM(Self-Adaptation) |
| Transmission Distance | ＞30km(Visual Distance) |
| Receiving Sensitivity | -97dBm@1MHz |
| Transmission Rate | Peak Value 90Mbps@20MHz |
| WIFI | Support WIFI Function |
| Transmitted Power | 2W |
| Video Input | Supports IP Network Video Input and WIFI Video Access |
| Voice Intercom | Optional Hand Microphone or Earphone |
| Networking Function | Networking Capability | Supports more than 64 nodes |
| Network Hop | >8 hops |
| Access Time | Access the network within 5 seconds after the system starts |
| Network Topology | Chain, star, mesh, etc |
| Network Transparent Transmission | Supports Layer 2 transparent transmission |
| System Function |
| Peripheral Interface | Ports, Audio Ports, and Serial Ports |
| Video Input | Support IP, WIFI input, HDMI(optional) |
| 控制功能(Control Function) | Supports the Network Management System Platform |
| System Parameter |
| Encryption Mod | AES128/AES256 |
| Power Supply Mode | DC12~36V wide voltage supply |
| Device Power Consumption | Peak power consumption ≤24W, standby power consumption ≤6W |

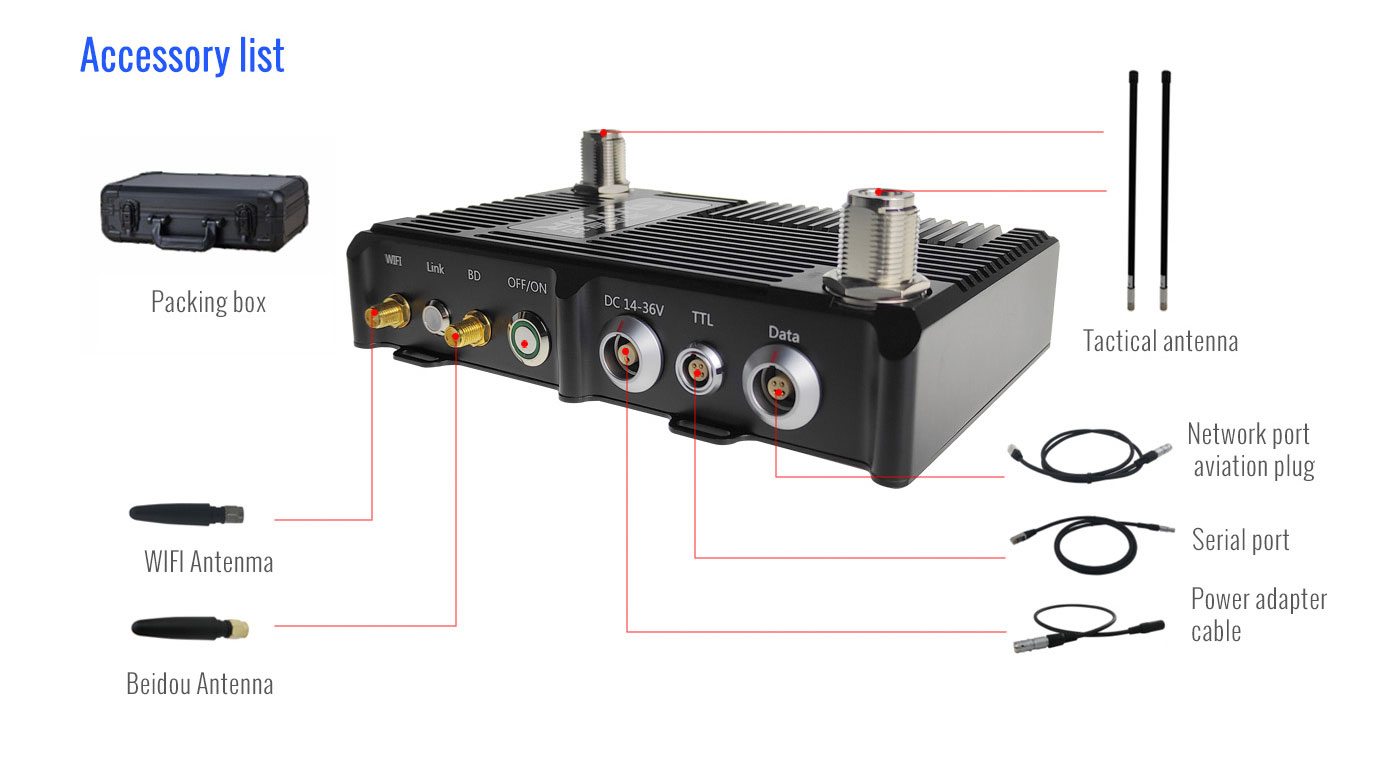

| Device Interface |
| Antenna Interface | N type x 2 |
| GPS Interface | SMA head |
| WIFI Interface | SMA head |
| Data Interface | RJ45 Network port (HDMI/CVBS/ serial port optional |
| Physical Index |

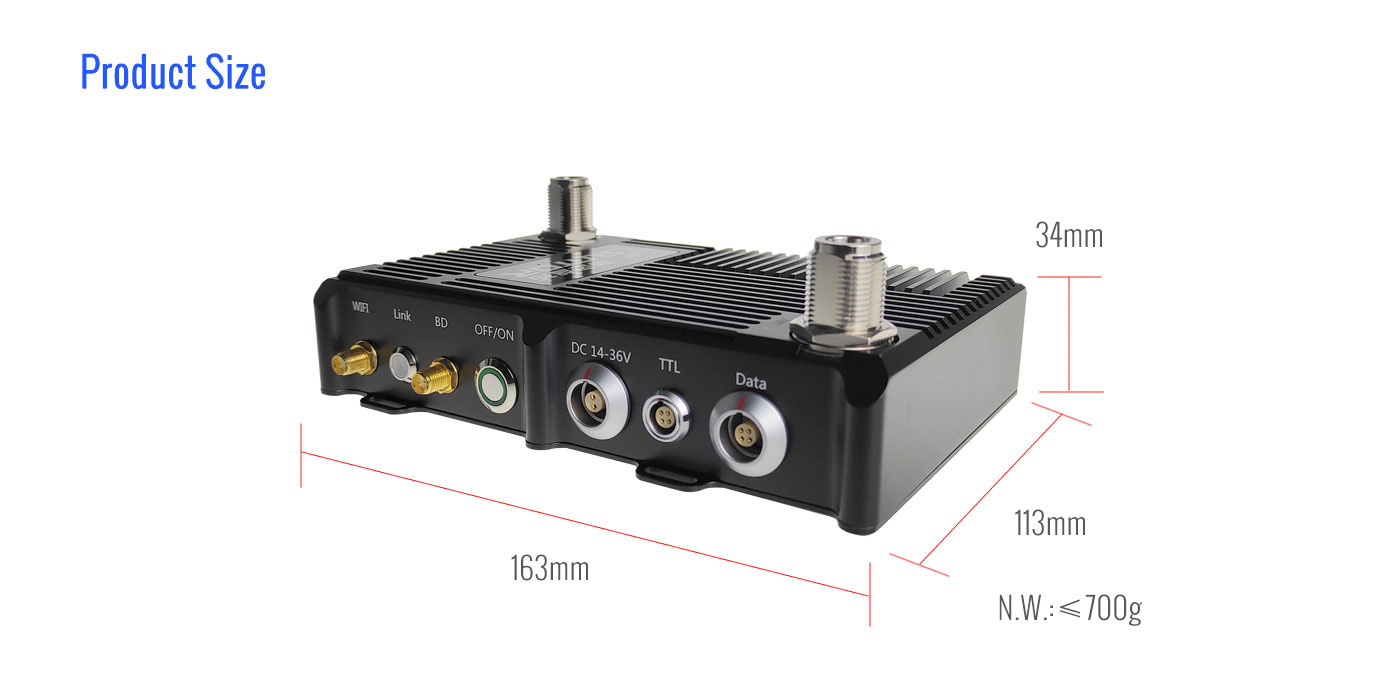

| Equipment Size | 163*113*54mm |
| Equipment Weight | 653g |
| Protection Class | IP65 |
| Operating Ambient Temperature | (-40℃～+75℃) |
Application
Unmanned system coordinated communication network, including
unmanned ships, unmanned vehicles, drones, robots and other
interconnection networks to achieve multi-in-one collaborative
communication.
Exhibition
