Outdoor CCTV CPE Wireless Ethernet Bridge 5Ghz PTP / PTMP 1 - 3km Short Range

5Ghz PTP/PTMP 1-3km Short range Wireless outdoor CCTV CPE/Bridges

Data Sheet

User Manual

Features:

- 300Mbps High Gain Outdoor Atheros AR9344 Chipset Wireless AP
- Multiple wireless modes(Ap Bridge/Client Bridge/WAN Getway)
- Ethernet physical rate 10/100Mbps
- WEB management supports multilingual
- Use high gain directive antenna, in addition,there are external interface for SMA antennas.
- Up to 300Mbps wireless transmission rate, farther transmission distance.
- Multiple encryption modes and strategy, wireless network is safer.
- Water-Proof(IP65),sun protection,it is provided with lightning-prevention design
- Integrated design for shell(Private), it can adapt bad working environments of outdoor

Specification:

Product name	5Ghz PTP/PTMP 1-3km Short range Wireless outdoor CCTV CPE/Bridges
MCU	Atheros AR9344
Memory	64MB DDR2
Flash	16MB
Interface	10/100M self-adaption LANWAN ports, support 12-15V PassivePoE; Support two SMA holes for external antenna interface; Reset Button;Led;DC Port
Antenna	Built-in 15dBi High gain directive antenna MIMO 2x2
Size	36147cm
Power	12V-15V(POE)/1A;110V/220V
RF parameters
Frequency	802.11b/g/n
	5.8GHz
	Japan ETSL/FCC
	Communication channel Optional
Modulation	OFDM=BPSK,QPSK,16-QAM,64-QAM
	DSSS=SBPSK,DQPSK,CCK
Throughput	300Mpbs
Sensitivity	802.11n(5.8GHz)	802.11g	802.11b
	-90dBm@MCSO	-90dBm@6Mbps	95dBm@1Mbps
	-70dBm@MCS7	-72dBm@54Mbps	-90dBm@11Mbps
	-90dBm@MCS8
	-68dBm@MCS15
Output Power	27dBm±1.5dBm 200mW	Radio1(WLAN1)
	802.11n(5.8Hz)(±1.5dBm)	802.11g(±1.5dBm)	802.11g(±1.5dBm)
	25dBm@MCS0~2/MCS8~10	25dBm@6~24/Mbps	25dBm@1~11/Mbps
	24dBm@MCS3/MCS11	25dBm@36Mbps
	23dBm@MCS4/MCS12	22dBm@48Mbps
	23dBm@MCS5/MCS13	22dBm@54Mbps
	22dBm@MCS6/MCS14
	22dBm@MCS7/MCS15
Software Features
Work Modes	AP Client mode;AP Bridge mode;Multi-Bridge/Repeater mode;Wireless Router mode
Standards	IEEE 802.3(Ethernet)
	IEEE 802.3u(Fast Ethernet)
	IEEE 802.11b/g/n(5.8G WLAN)
Wireless Function	Auto-Channel selection
	Distance Control (802.1x Ack timeout)
	Multiple SSID (4-6 SSID)
	BSSID
Security	WEP Encryption-64/128/152 bit
	WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
	WPA/WPA2 Enterprise (WPA-EAP using TKIP)
	Hide SSID
System Settings	WEB configuration (HTTP / Telnet)
Software Upgrade	WEB page or TFTP to upgrade software
User Management	Configurable user and password
System Monitoring	Device network status statistics
Journal	Provide local log, host logs, file transfer log
Reset	Reset to factory setting
Backup	Back up the system configuration, when you need to restore the user name of the configuration
Physical Characteristics
Working temperature	-20℃-50℃;Storage temperature:-30℃-70℃
Working humidity	5%-95%RH non-condensation
Storage temperature	5%-90%RH non-condensation

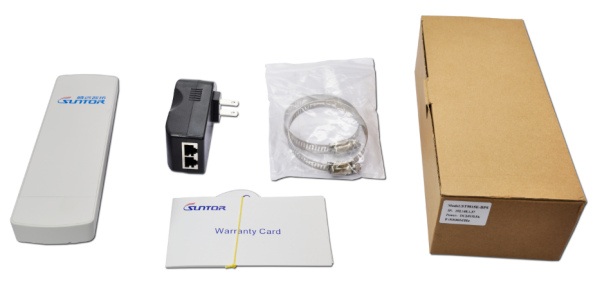

Package List
