26dBm ad hoc network multicast drone video transmitter wireless IP
mesh module
ST9601MS Specs.pdf
Introduction:
Based on the growing demand of the proprietary communications
market,our 1st Mesh product model module can able to deliver
video,voice,and data signals over IP networks in a complex
environment with a wide coverage,strong diffraction ability,high
transfer rate and self-defined security encryption.The Mesh is
suitable not only for PTP communication,but also centerless
multi-hop ad hoc network. According to the work environment and the
number of nodes, it throughput up to 80Mbps, transmit distance can
be extended through multi-hop. As Mesh self-organizing /
self-healing features make it very suitable for motion surveillance
with high quality image and emergency communication.
Advantages:
- Centerless ad-hoc MESH networks
- Optional frequency: 570~590MHz/1400~1420MHz
- High transfer rate: up to 80Mbps
- Strong receiving sensitivity: -92dBm
- High data throughput rates
- Robust reliable wireless IP networks
- Operates between fast moving UAV
- Rapidly deployable wireless surveillance system

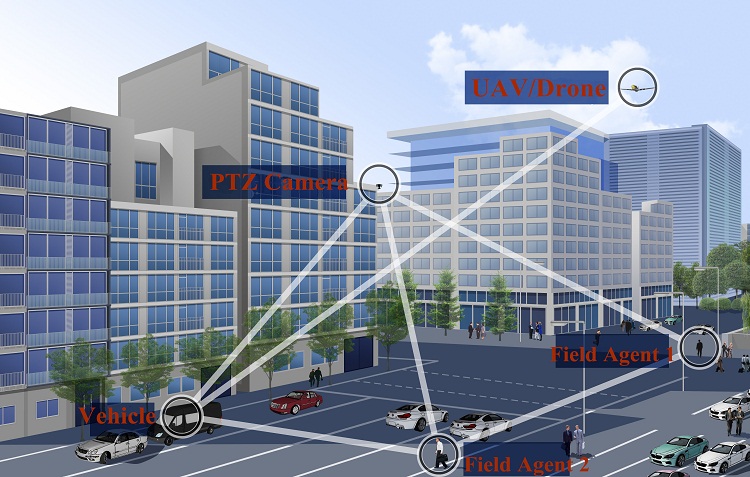

Application:
grade machine design, lightweight, for portable. Shell-case of
metal material, level designed and lightweight to take full
consider of heat dissipation, security, harsh working conditions
and other factors, and easy for deployment and operation. We design
and manufacture the all IP mesh products and the core technology
and intellectual property rights in our own hands,so that some
sensitive customers and projects can be assured of purchasing from
us. And we accept of flexible customization based on user
needs.Product is widely used in public security, armed , fire,
disaster relief and other emergency communications systems; UAV
aerial, electricity, water, waterway, border and other monitoring.
Technical Parameters
| Working Frequency | 570~590MHz/1400~1420MHz 500~1400MHz(On request) | Bootloader | U-boot |
| 2412-2462MHz(Wifi) | Linux | 3.18.19 |
| 1559-1577MHz(GPS) | Wired Network | IP address configurable |
| Bandwidth | 5/10/20MHz | Subnet Mask Configurable |
| 20MHz(Wifi) | Wireless Network | Working Frequency Adjustable |
| RF Power | 1W | Bandwidth Adjustable |
| 0.2W(Wifi) | RF Power Adjustable |
| Receive Sensitivity | -92dBm | Support Adhoc |
| -90dBm(Wifi) | ESSID/BSSID Configurable |
| Duplex Mode | TDD | Supports adaptive rate and fixed rate modes |
| Modulation | BPSK/QPSK/16-QAM/64-QAM |
| Diversity Mode | Transmitting and receiving diversity | Support Distance Optimization |
| Upstream and downstream bandwidth | Two-way bandwidth up to 80Mbps | Support RTS/CTS Setting |
| 40Mbps(Wifi) | Connection Status Display |
| Antenna | 2*N type Antenna Interface | Wifi | Working Frequency Adjustable |
| 1*Wifi SMA Antenna Interface | RF Power Adjustable |
| 1*GPS SMA Antenna Interface | Support AP mode |
| Ethernet | 1*100Mbps Ethernet Interface | ESSID Configurable |
| Serial Interface | Support RS232 (Bit rate 9600-115200bps Adjustable) |
| Indicator | 1*System States Indicator Light | Supports adaptive rate mode |
| 1*Ethernet Status Indicator Light | Support WMM/802.11e QoS |
| 1*Wifi States Indicator Light | Support Distance Optimization |
| 3*Network Signal Strength Indicator Light | Support RTS/CTS Setting |
| Key | 1*Reset Button | Support MAC address filtering |
| Power | DC9-28V | Connection Status Display |
| Power Consumption | DC12V Standby Current 320mA Ad Hoc Network Current 460mA Data Transmission Current 1.2A | WPA/WPA2/WEP Encryption |
| Battery | 12V2600mAh | Hidden ESSID |
| Encryption | AES128 |
| Battery Endurance | 2hours | Support Network transparent transmission GPS original positioning
data |
| Dimension | 141.5mm*88mm*30mm | Support web page management |
| Temperature | Storage: -30℃~+90℃ | Management | Support SSH security management |
| Working: -20℃~+65℃ | Import/export configuration information |
| Weight | 820g(Including Battery) | Restore factory configuration |
| Serial Port | 1*Serial Port(On request) | Update firmware online |
| Moving Speed | ＞200km/h | |
