1.2GHz mini 7.5W 12CH 1000m wireless av sender receiver for analog camera

T-098 is a portable wireless video transmission device with high performance/price ratio. It features small size, low power consumption and good penetrability. The device is especially applicable to one-person operation that requires proper camouflage and small-size battery. The specially-designed A/V interfaces may be directly connected to the vide recorder and supply power for the recorder, there is no unwanted interface and some space is saved, it’s easier to carry with. The device is applicable to the work demands of criminal detection, concealed detection, fieldwork and special tasks.

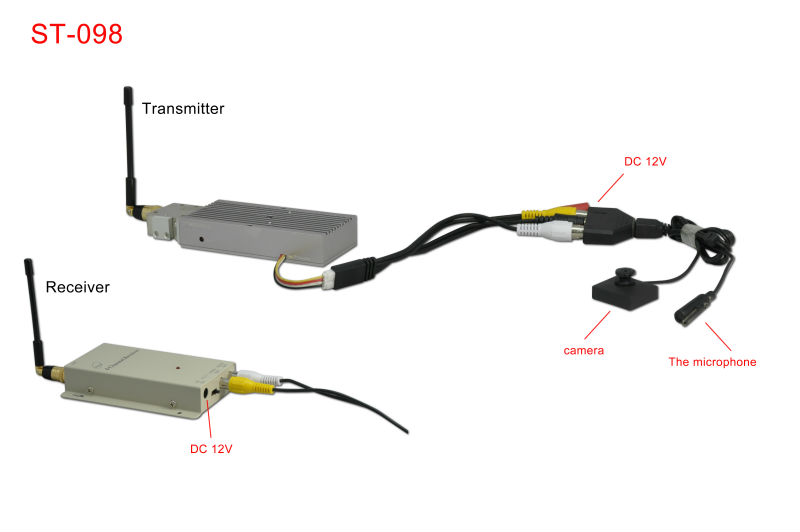

The specially-designed four-core square-hole connector may be directly connected to the portable mini video recorder; the emitter and camera are electrified by same power supply to make the device better to be concealed. In case the customer wants to equip his/her own camera, a special connection wire shall be provided to connect other analog cameras. Transmission distance: more than 1,000m (open environment without obstructs), and about 300m (environment with obstructs).

Features:

• Use 1.2GHz ISM frequency band.
• 1000 m transmission range without any holdback.
• 12 groups of selectable channels, it can effectively avoid the interference from router and other wireless devices.
• Support 1 group of AV signal input/ output.
• Supports video transmission of PAL/ NTSC system and stereo audio transmission, Pictures received are clear, flamboyant and stable.
• Full hardware design without installing any software, plug and play, simple and convenient.
• Fashionable design, Machine dimensions: 14 × 5.1 × 2.1 cm.

As a portable device, it also requires small-size peripheral accessories. According to the needs of distance can choose high-gain Yagi directional antenna, wireless transmission distance is much more farther.

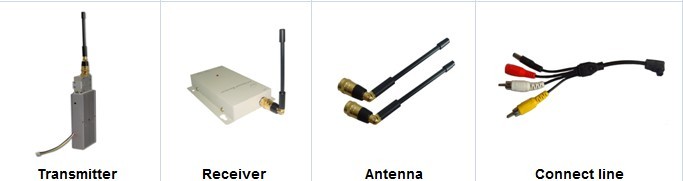

Package includes

• 1 * transmitter
• 1 * receiver,
• 2 * small omni antenna
• 1 * connect line (power input, video input, audio input and power output)
